Toyota LC200 (2007-2021) 4x4 Engine (Part 1) Bash Plate — Aluminium
Engine Sump Protection — Front Section
Installation Manual - Click here
Weight: 11.5 kg

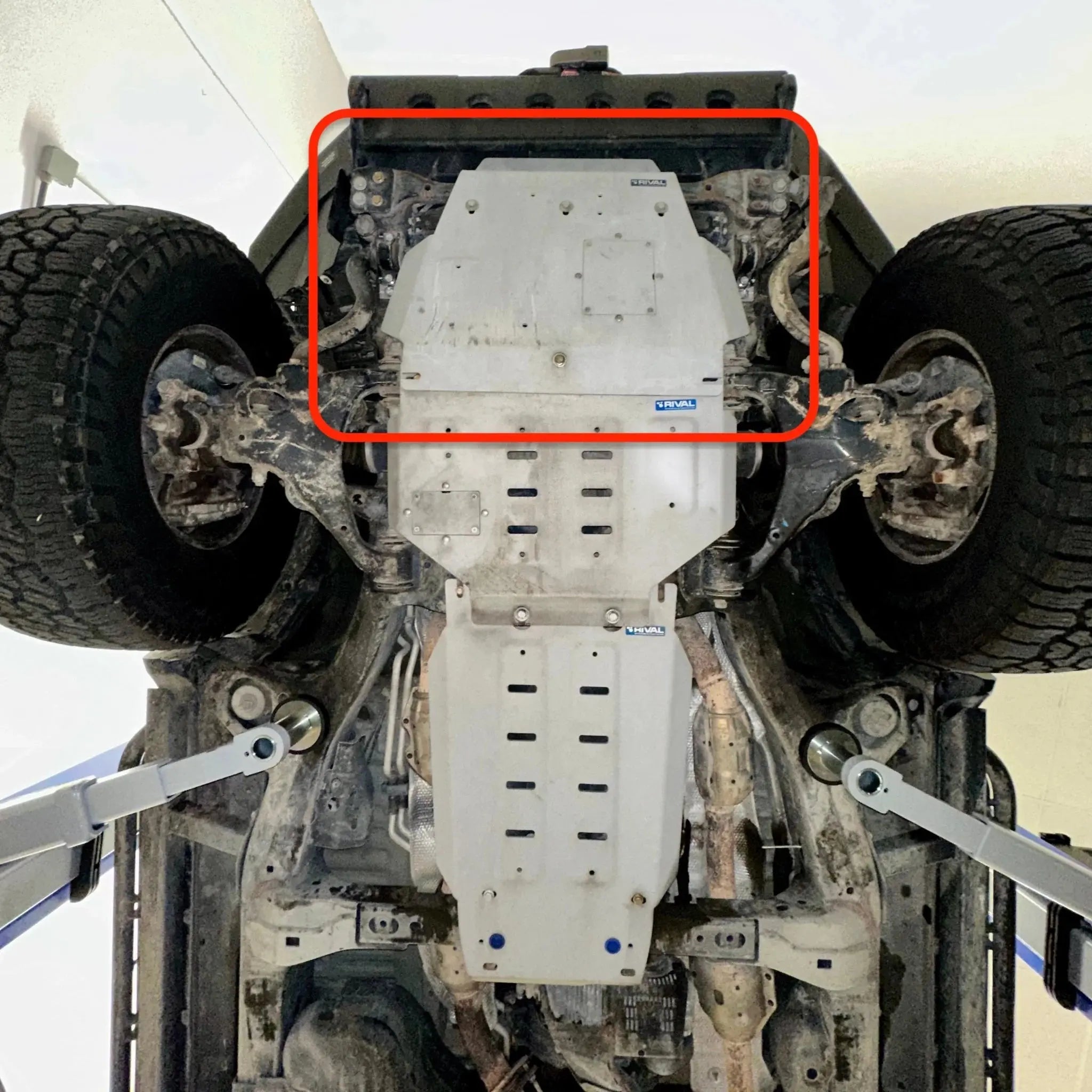

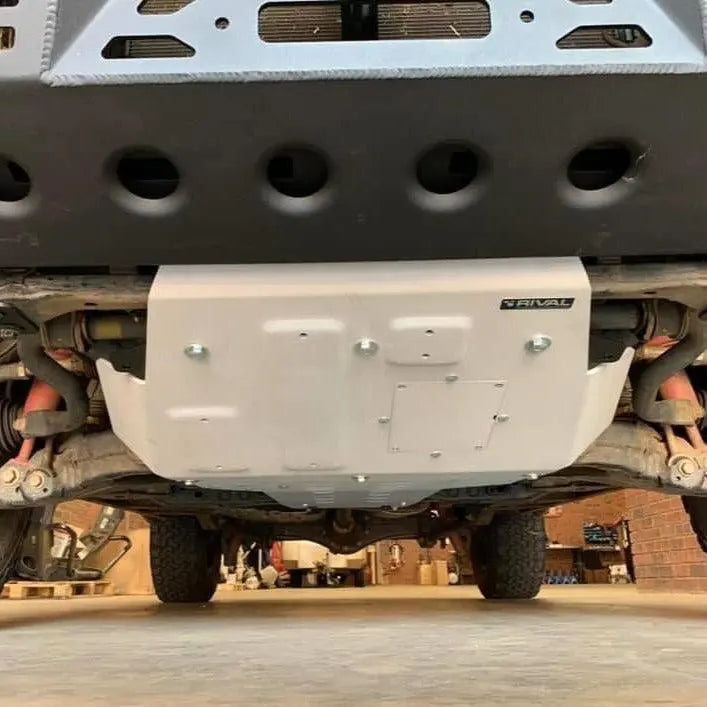

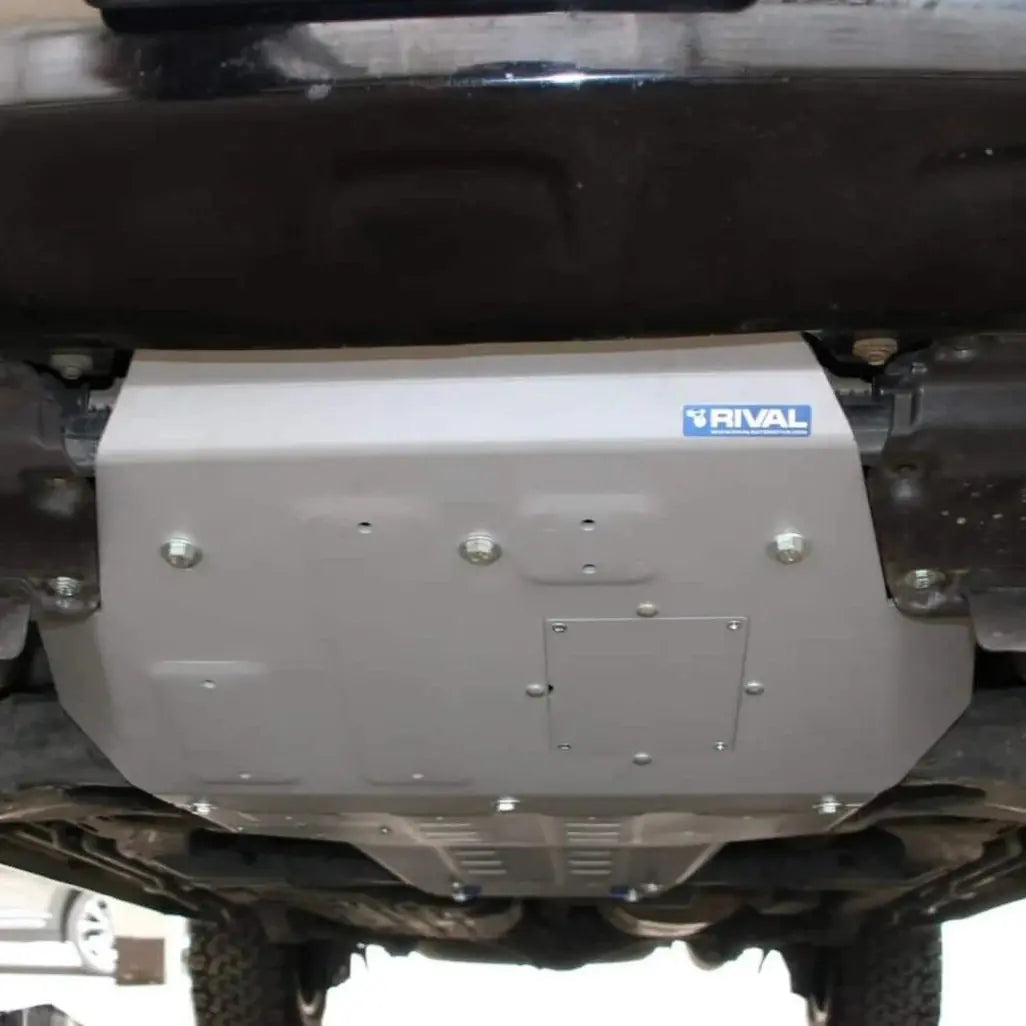

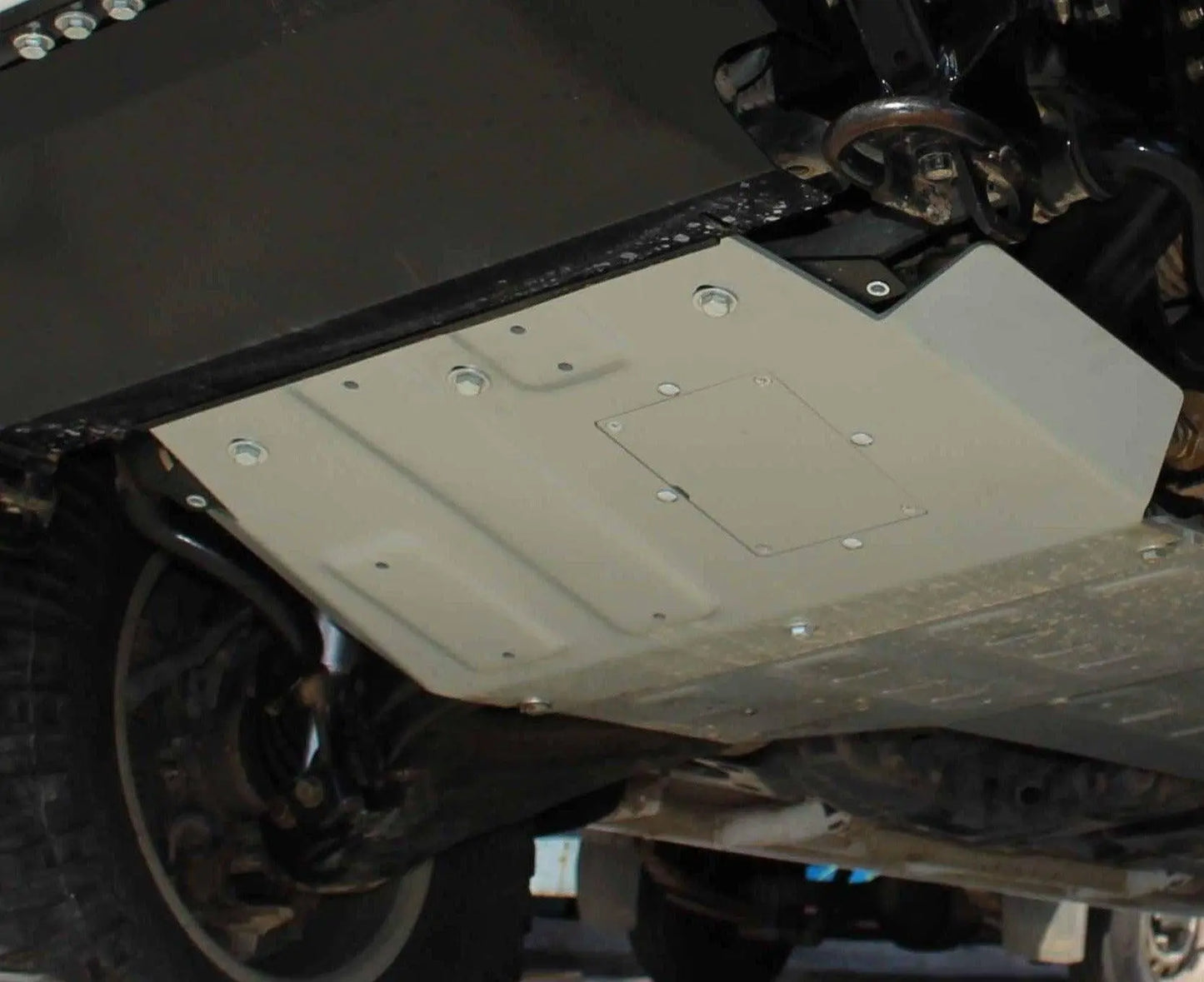

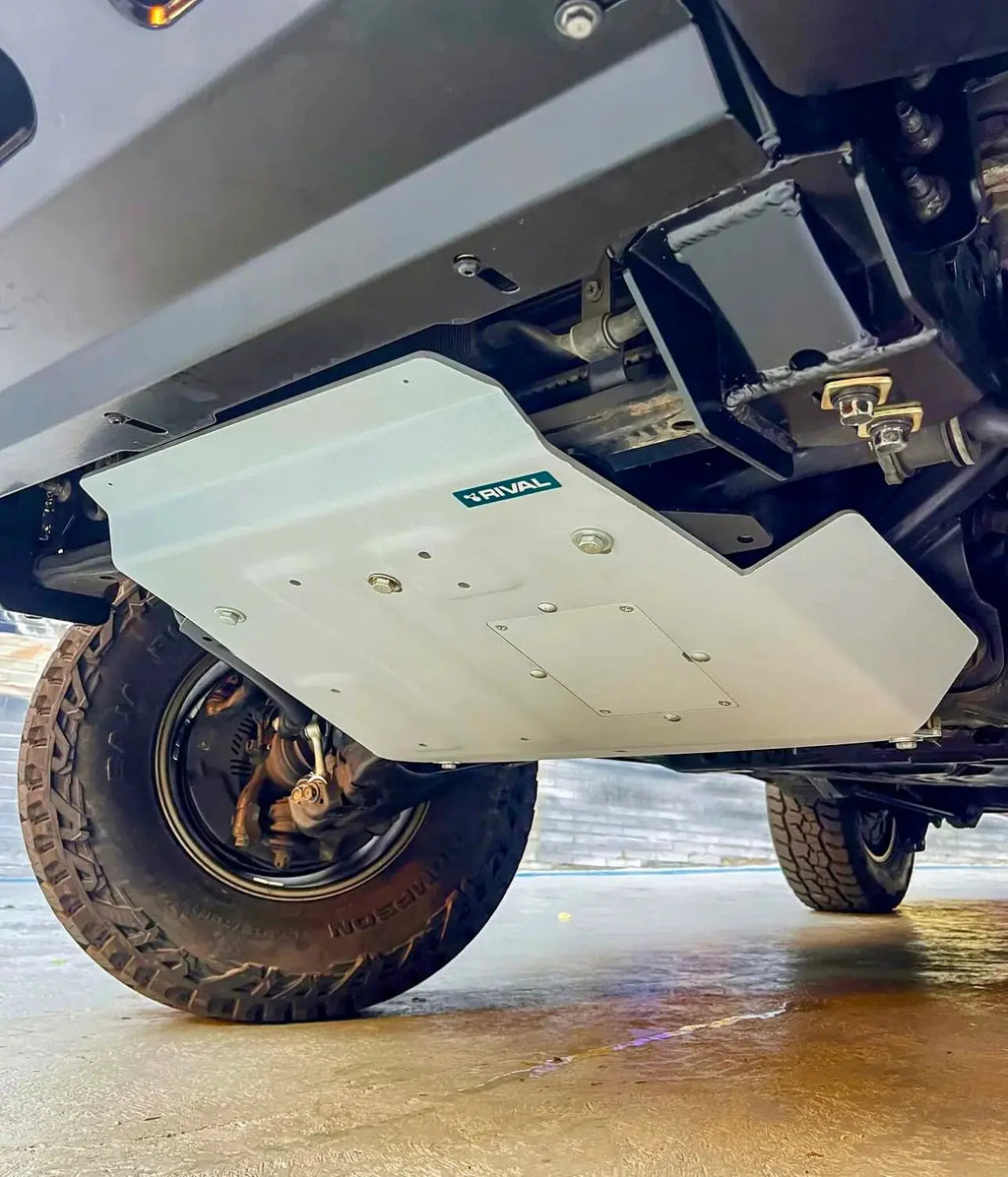

When you're tackling the deep mud and protruding sandstone ledges of the Watagan Mountains tracks, where they sit at perfect underbody height, your Toyota Land Cruiser 200's mighty V8 engine is protected at the front by this Part 1 bash plate. The LC200's engine bay is substantial — housing either the 4.6L V8 petrol or the twin-turbo 4.5L V8 diesel — and requires two-part protection for complete coverage. The RIVAL 4x4 Engine (Part 1) Bash Plate covers the front section of your engine sump — the first line of defence against rocks and debris striking from below. Crafted from deep-stamped 6mm high-strength aluminium alloy, this 11.5 kg plate is the foundation of your LC200's underbody protection system.
- ✓ High-Strength 6mm Aluminium Alloy Construction
- ✓ Precision Fit — Vehicle-Specific Design for Toyota LC200
- ✓ Front Engine Sump Coverage
- ✓ Corrosion-Resistant Powder Coat Finish
- ✓ Ventilated Design for Airflow & Debris Drainage
- ✓ Bolt-On Installation — No Drilling Required
Key Features
-
Material: 6mm Deep-Stamped High-Strength Aluminium Alloy (5251 grade)
-
Thickness: 6mm
-
Weight: 11.5 kg
-
Finish: Textured Matte Black Polymer Powder Coat
-
Mounting: Direct bolt-on to factory mounting points — no drilling or chassis modification required
-
Fitment: Toyota Land Cruiser 200 Series (2007-2021)
Why Choose Aluminium Over Steel?
-
Weight Savings: Aluminium is approximately 40% lighter than steel — essential for the LC200 where every accessory adds to an already substantial kerb weight and challenges GVM limits.
-
Corrosion Resistance: Unlike steel, aluminium naturally forms a protective oxide layer. Combined with powder coating, your bash plate won't rust — even after decades of outback service.
-
Energy Absorption: Aluminium's natural flex absorbs and distributes impact energy across the plate rather than transferring jolts to the engine block and front crossmember.
-
Modern Vehicle Design: The LC200 is commonly fitted with multiple accessories. Aluminium protection minimises weight contribution to an already complex GVM equation.
What's Included
- ✓ 1x RIVAL Engine (Part 1) Bash Plate for Toyota LC200
- ✓ Complete Mounting Hardware & Fitting Kit
- ✓ High-Tensile Bolts & Fasteners
- ✓ Installation Instructions
Installation
-
Difficulty: Easy — suitable for home mechanics with basic tools
-
Requirements: Standard socket set, jack & stands or vehicle hoist
-
Bolt-On Design: Mounts directly to factory mounting points with no drilling, cutting, or permanent modification. Pair with the Engine (Part 2) plate for complete front-to-back coverage.
Built for Australian Conditions
The LC200 is Australia's ultimate touring and expedition vehicle. Many examples have crossed the continent multiple times, tackling the Canning Stock Route, the Tanami, the Madigan Line, and every track in between. These vehicles demand comprehensive protection, and RIVAL's two-part engine bash plate system delivers exactly that — complete front-to-back engine coverage designed for the most demanding conditions on Earth.
Deep-stamped construction creates stiffening ribs for up to two times the impact resistance of flat plates. Powder coat resists UV, salt, and the relentless red dust of outback Australia.
Perfect For
- Long-distance outback touring — Canning Stock Route, Tanami Track, Simpson Desert, Cape York
- Coastal driving where salt air accelerates corrosion on exposed engine components
- Station work and rural property access across rough terrain
- Serious off-road adventures including rock crawling, river crossings, and rutted tracks
- Daily driving with peace of mind knowing your engine front section is fully armoured
Compatibility
Vehicle: Toyota Land Cruiser 200 Series (2007-2021)
Engine Options: 4.6L V8 Petrol (1UR-FE), 4.5L V8 Twin-Turbo Diesel (1VD-FTV)
Variants: All trim levels including GX, GXL, VX, and Sahara. Verify fitment with your vehicle's build date and chassis number if unsure.
Why RIVAL 4x4?
-
Australian-Based Operations & Support: Local team, local warranty, local knowledge. Phone and email support from people who actually drive these tracks.
-
Globally Engineered. Locally Proven: Designed using advanced CAD/CAM and FEA stress analysis, then tested on Australia's toughest tracks to ensure real-world performance.
-
High-Strength Aluminium Construction: Premium 5251-grade alloy, deep-stamped for maximum rigidity, finished with durable polymer powder coat.
-
Fast Australia-Wide Dispatch: Stocked locally for rapid delivery to metro, regional, and remote addresses across Australia.
-
National Dealer & Installation Network: Professional fitting available through RIVAL's network of authorised dealers and 4x4 workshops across every state and territory.
Your LC200's V8 deserves the best protection. Start with the Part 1 plate and complete the system with Part 2. RIVAL 4x4 — total engine armour for Australia's ultimate tourer. Order now!
