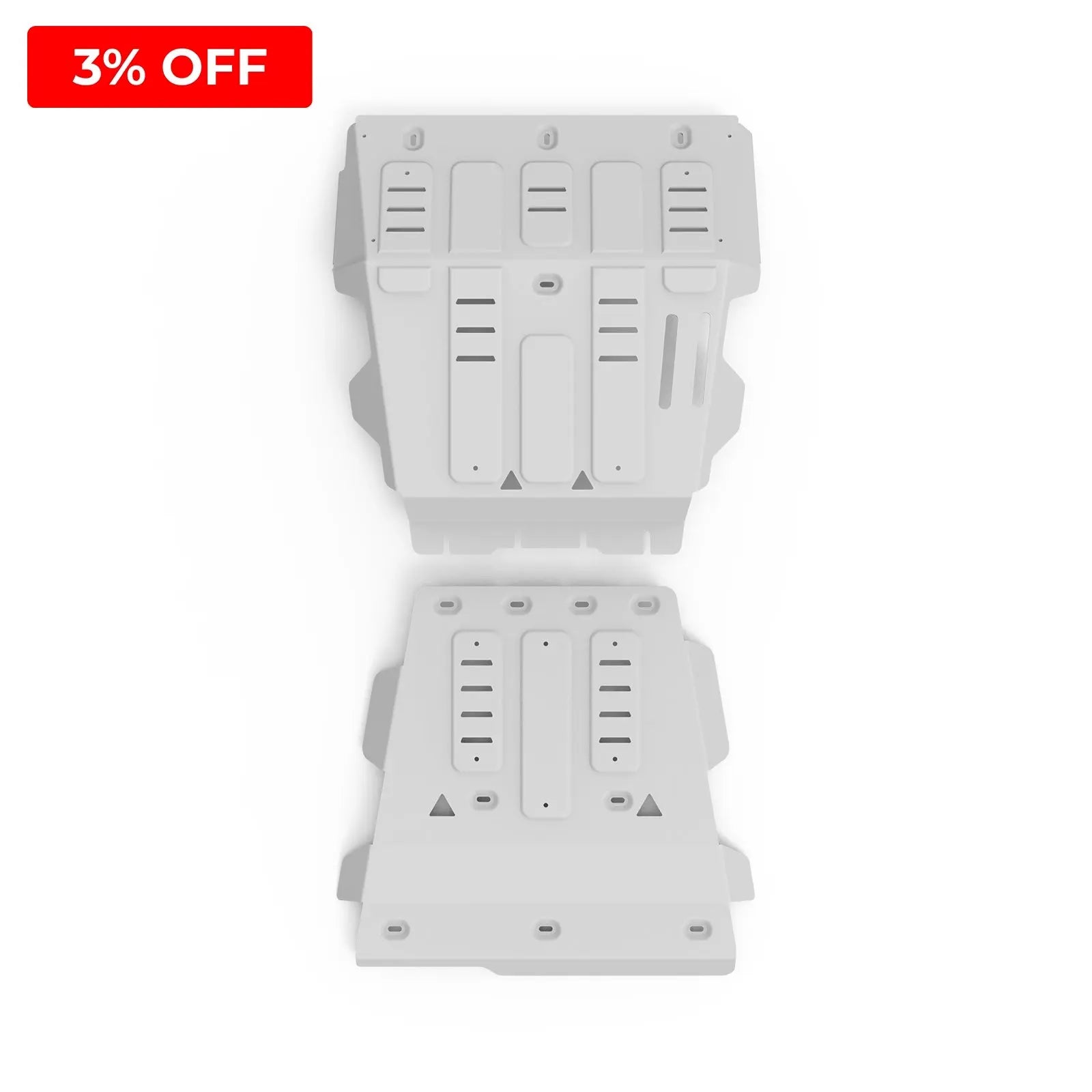

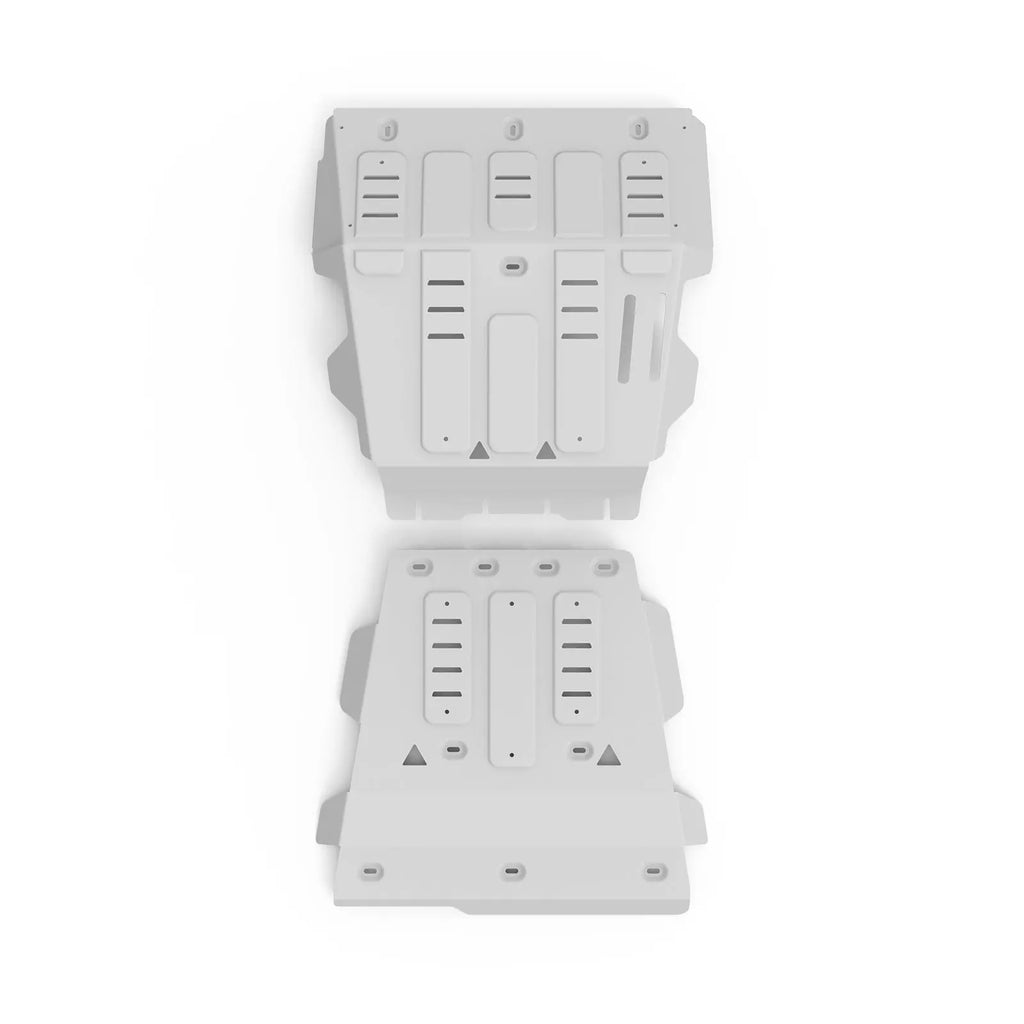

VW Amarok (2010–2016) Bash Plate Set – Engine & Transmission
Dual-Plate Underbody Protection: Engine & Transmission Coverage
Installation Manual
Combined Weight: 37.6 kg
The first-generation VW Amarok earned its reputation as a capable workhorse across Australia’s toughest landscapes. Whether you’re navigating the red pindan tracks of the Kimberley or hauling supplies along dusty farm roads in rural Victoria, the engine and transmission sitting beneath your Amarok cop the worst of it. This RIVAL 4x4 two-piece bash plate set wraps your powertrain in high-strength aluminium armour, purpose-engineered for the 2010–2016 Amarok platform — so you can keep driving where sealed roads end.
- ✓ Complete Underbody Protection — Engine & Transmission
- ✓ High-Strength Aluminium Construction
- ✓ Precision Fit for VW Amarok (2010–2016)
- ✓ Corrosion-Resistant Powder Coat Finish
- ✓ Ventilated Design for Optimal Airflow
- ✓ Bolt-On Installation — No Drilling Required
- ✓ Cost-Effective Bundle — Save vs Buying Individually
What's Protected
-
Engine Bash Plate — The Amarok’s oil sump and lower engine block are directly in the firing line on rough terrain. One well-placed rock can puncture the sump pan and leave you stranded in the middle of nowhere with a seized engine. This plate provides comprehensive shielding across the entire engine underside, absorbing impacts from rocks, roots, and rutted tracks.
-
Transmission Bash Plate — Sitting just behind the engine, the transmission casing is equally vulnerable to underbody strikes. Damage here means expensive repairs and a vehicle that’s going nowhere under its own power. This dedicated plate guards the gearbox housing against impacts, keeping your drivetrain intact through the roughest sections of track.
Key Features
-
Material: High-strength aluminium alloy
-
Thickness: 6mm
-
Combined Weight: 37.6 kg
-
Finish: Textured matte black powder coat — corrosion and UV resistant
-
Mounting: Direct bolt-on to factory mounting points
-
Number of Plates: 2 (Engine + Transmission)
-
Fitment: VW Amarok (2010–2016) — all variants
Why Choose Aluminium Over Steel?
-
Weight Savings: Aluminium delivers roughly 40% less weight than equivalent steel plates, preserving your Amarok’s payload and fuel efficiency across long-distance hauls.
-
Corrosion Resistance: Aluminium won’t rust when exposed to creek crossings, coastal salt, or tropical moisture — conditions that rapidly degrade uncoated steel.
-
Energy Management: The natural flex characteristics of aluminium help absorb and spread impact forces, protecting both the plate and your vehicle’s chassis mounts.
-
Modern Vehicle Design: Aluminium protection works with your Amarok’s factory-engineered weight distribution rather than against it, maintaining handling and ride quality.
What's Included
- ✓ 1x Engine Bash Plate
- ✓ 1x Transmission Bash Plate
- ✓ Complete Mounting Hardware & Fasteners
- ✓ Fitting Instructions
Installation
-
Difficulty: Moderate — achievable for confident home mechanics
-
Requirements: Standard metric socket set, jack and axle stands or vehicle hoist
-
Bolt-On Design: Mounts directly to existing factory points with no drilling, welding, or permanent modifications
-
Recommendation: Fit both plates together in one session to maximise protection and minimise time under the vehicle
Built for Australian Conditions
From the bulldust of outback New South Wales to the rocky river crossings of Cape York, Australia’s terrain is uniquely hostile to exposed underbody components. Factor in coastal salt air that accelerates corrosion, tropical humidity that traps moisture, and summer temperatures that push materials to their limits — and you understand why factory plastic undertray simply isn’t enough. RIVAL 4x4 bash plates are built with these conditions front of mind, delivering genuine protection that lasts the life of your vehicle.
Perfect For
-
Outback Touring: Drive confidently through remote Australia knowing your powertrain is protected when you’re hundreds of kilometres from a workshop
-
Coastal Adventures: Corrosion-resistant construction handles salt air and sand driving without degrading
-
Tradies & Work Vehicles: Ideal for Amaroks pulling duty on construction sites, farms, and forestry operations
-
Off-Road Weekenders: Weekend trail runs through state forests and 4WD parks without the stress of underbody damage
-
Daily Protection: Guard against road debris, speed bumps, and car park hazards during the weekly commute
Compatibility
Precision-engineered for the Volkswagen Amarok (2010–2016) — all cab configurations and drivetrain variants including the 2.0L TDI (single and bi-turbo). Designed to integrate seamlessly with factory underbody mounting points for a clean, OEM-quality fit.
Why RIVAL 4x4?
-
Australian-Based Operations & Support: A dedicated local team providing warranty support and product advice from within Australia
-
Globally Engineered. Locally Proven: Precision-designed with advanced manufacturing methods and tested on real Australian tracks
-
High-Strength Aluminium Construction: Premium-grade materials delivering maximum protection at minimum weight
-
Fast Australia-Wide Dispatch: Quick shipping to metro, regional, and remote addresses across the country
-
National Dealer & Installation Network: Access to professional installers right across Australia through our dealer partners
Shield your Amarok’s heart and soul — fit RIVAL underbody protection and take on any track Australia throws at you. Order now!
