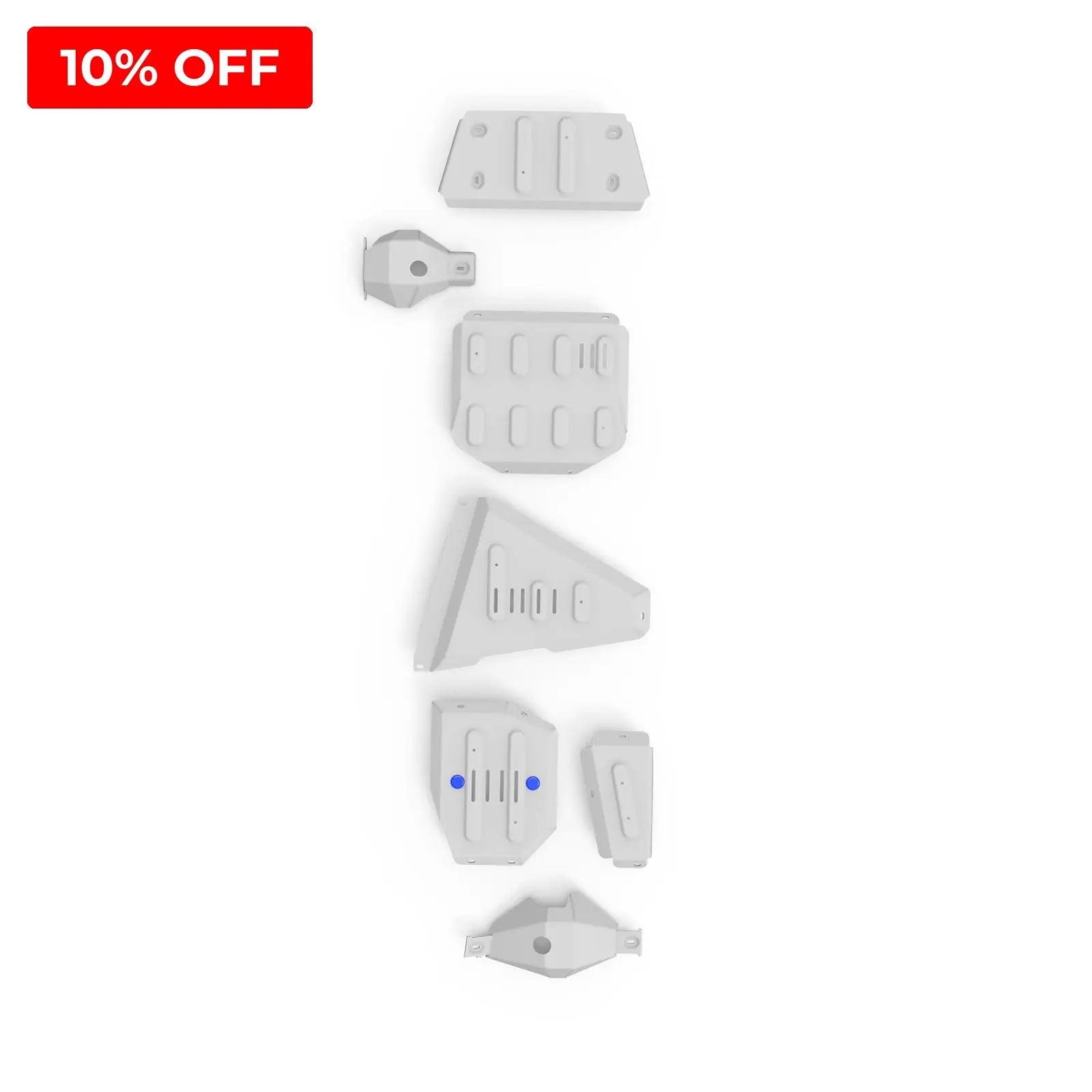

RIVAL 4x4 Suzuki Jimny (2018-Present) Rear Diff, Fuel Tank, Transmission, Transfer Case & Steering Bash Plate Set — Aluminium
Rear Differential Protection | Fuel Tank Protection | Transmission Protection | Transfer Case Protection | Steering Components Protection
Installation Manual - Click here
Combined Weight: 16.8 kg
When you’re pushing your Suzuki Jimny across Old Telegraph Track in Cape York, every component beneath the vehicle is exposed to rocks, ruts, and hidden obstacles. This comprehensive 5-plate set protects your Rear Differential, Fuel Tank, Transmission, Transfer Case and Steering — giving you virtually complete underbody coverage from front to rear. Instead of leaving gaps in your armour, this RIVAL 4x4 set delivers integrated protection for every critical component, all engineered to work together as a seamless defence system for your Suzuki Jimny.
- ✓ Complete Underbody Protection
- ✓ High-Strength 6mm Aluminium Alloy
- ✓ Precision Fit for Your Vehicle
- ✓ Full-Coverage Component Protection
- ✓ Corrosion-Resistant Construction
- ✓ Ventilated Design for Heat Dissipation
- ✓ Bolt-On Installation — No Drilling Required
- ✓ Cost-Effective Bundle
What’s Protected
- Rear Differential Bash Plate — Protects the rear diff housing from rock strikes that can crack the casing and cause catastrophic gear oil loss — keeping your 4WD drivetrain fully operational.
- Fuel Tank Bash Plate — Shields your fuel tank from punctures caused by rocks and debris — preventing dangerous fuel leaks and ensuring you can carry enough fuel for remote touring.
- Transmission Bash Plate — Guards the transmission housing from impacts that can crack the casing or damage internal components — keeping your gearbox shifting smoothly.
- Transfer Case Bash Plate — Armours the transfer case — the heart of your 4WD system — from rock strikes that can disable low-range capability when you need it most.
- Steering Bash Plate — Protects exposed steering rods and linkages from impacts that can cause alignment issues or steering failure on technical terrain.
Key Features
- Material: 6mm High-Strength Aluminium Alloy
- Thickness: 6mm
- Combined Weight: 16.8 kg
- Finish: Textured Matte Black Powder Coat (zinc primer base layer)
- Construction: Deep-Stamped with Reinforcing Ribs for Maximum Rigidity
- Mounting: Bolt-On — Uses Factory Mounting Points, No Drilling Required
- Number of Plates: 5 (Rear Diff + Fuel Tank + Transmission + Transfer Case + Steering)
- Fitment: Vehicle-Specific — Precision Laser-Cut for Suzuki Jimny (2018-Present)
Why Choose Aluminium Over Steel?
- Significant Weight Savings — Aluminium is approximately 40% lighter than steel, critical for the Jimny’s compact suspension system and tight GVM limits.
- Superior Corrosion Resistance — Aluminium naturally forms a protective oxide layer that resists rust — even when the powder coat is scratched. Essential for beach and creek crossings.
- Excellent Energy Absorption — Aluminium’s flex characteristics absorb and distribute impact energy rather than transmitting forces into the chassis.
- Engineered for Lightweight Vehicles — Every kilogram counts on the Jimny. Aluminium delivers serious protection without overloading suspension or affecting handling.
What’s Included
- ✓ Rear Differential Bash Plate
- ✓ Fuel Tank Bash Plate
- ✓ Transmission Bash Plate
- ✓ Transfer Case Bash Plate
- ✓ Steering Bash Plate
- ✓ Complete Mounting Hardware & Fitting Kit
- ✓ High-Tensile Bolts & Fasteners
- ✓ Installation Instructions
Installation
- Difficulty: Straightforward — suitable for experienced DIY installers or any qualified 4WD workshop
- Requirements: Basic hand tools (spanners, socket set, torque wrench). No specialised equipment needed.
- Bolt-On Design: All five plates attach directly to factory mounting points. No drilling, cutting, or permanent modifications required.
- Time: Approximately 2.5–3 hours for the complete set.
- Tip: We recommend installing all five plates in one session for maximum efficiency.
- Professional Installation: Available through RIVAL 4x4’s national dealer network across Australia.
Built for Australian Conditions
Australia’s off-road environment is among the harshest on earth. From the razor-sharp quartzite rocks of Cape York to the sun-baked corrugations of the Simpson Desert — your Jimny’s underside faces relentless punishment. RIVAL 4x4 bash plates are engineered specifically for these conditions: 6mm aluminium alloy handles direct rock strikes, deep-stamped reinforcing ribs add structural rigidity, and the corrosion-resistant finish stands up to salt air, red dust, and muddy creek crossings.
Perfect For
- Remote Touring & Overlanding — Comprehensive underbody protection for extended outback trips
- Coastal & Beach Driving — Full protection with corrosion-resistant aluminium construction
- Tradies & Work Sites — Defend every critical component on rough work sites
- Weekend Off-Road Adventures — Hit technical tracks with confidence knowing your entire underside is armoured
- Daily Protection & Peace of Mind — Complete coverage for everyday hazards too
Compatibility
Suzuki Jimny (2018-Present) — 1.5L Petrol (K15B) — All variants including GLX, Lite, and special editions — Manual and Automatic transmissions
Not sure if this set fits your vehicle? Contact the RIVAL 4x4 team at rival4x4.com.au or call our Australian-based support team.
