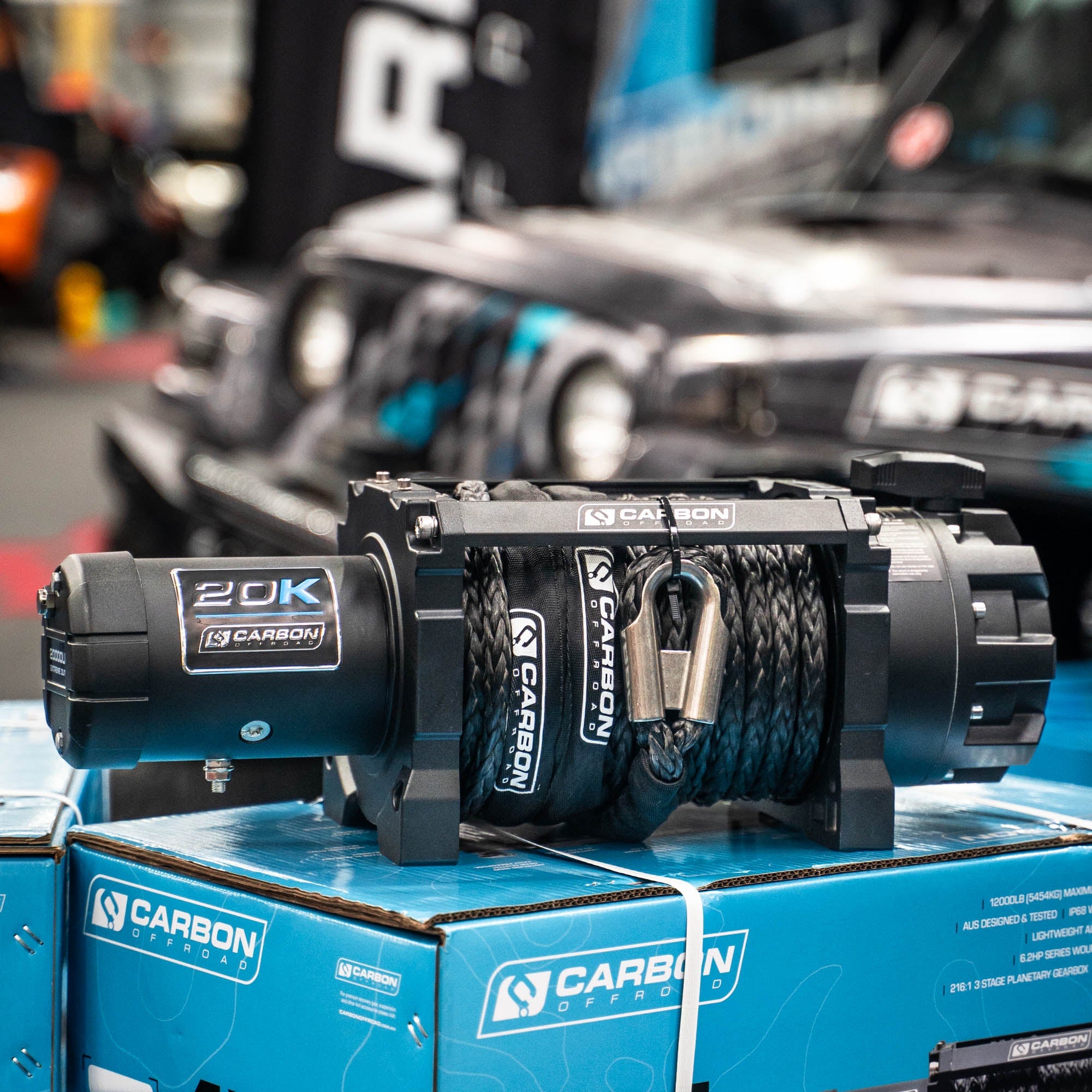

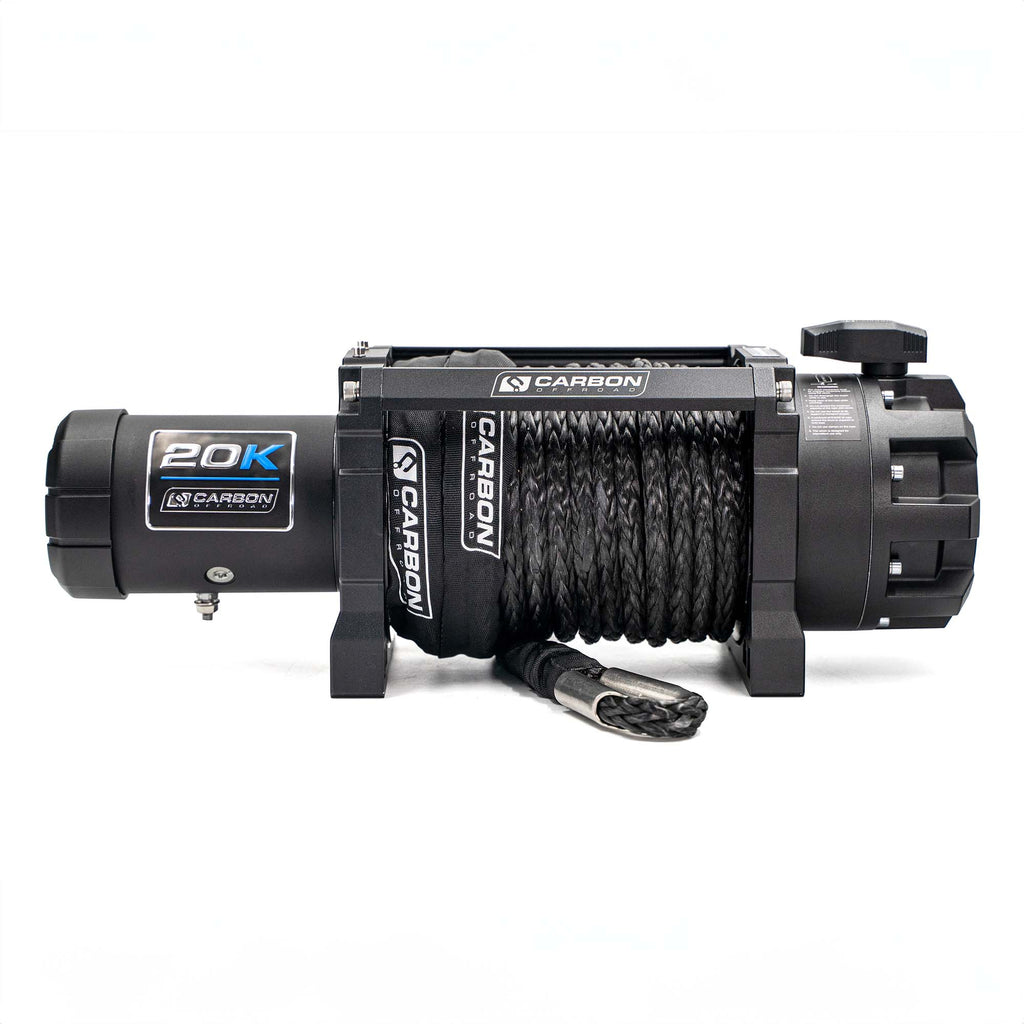

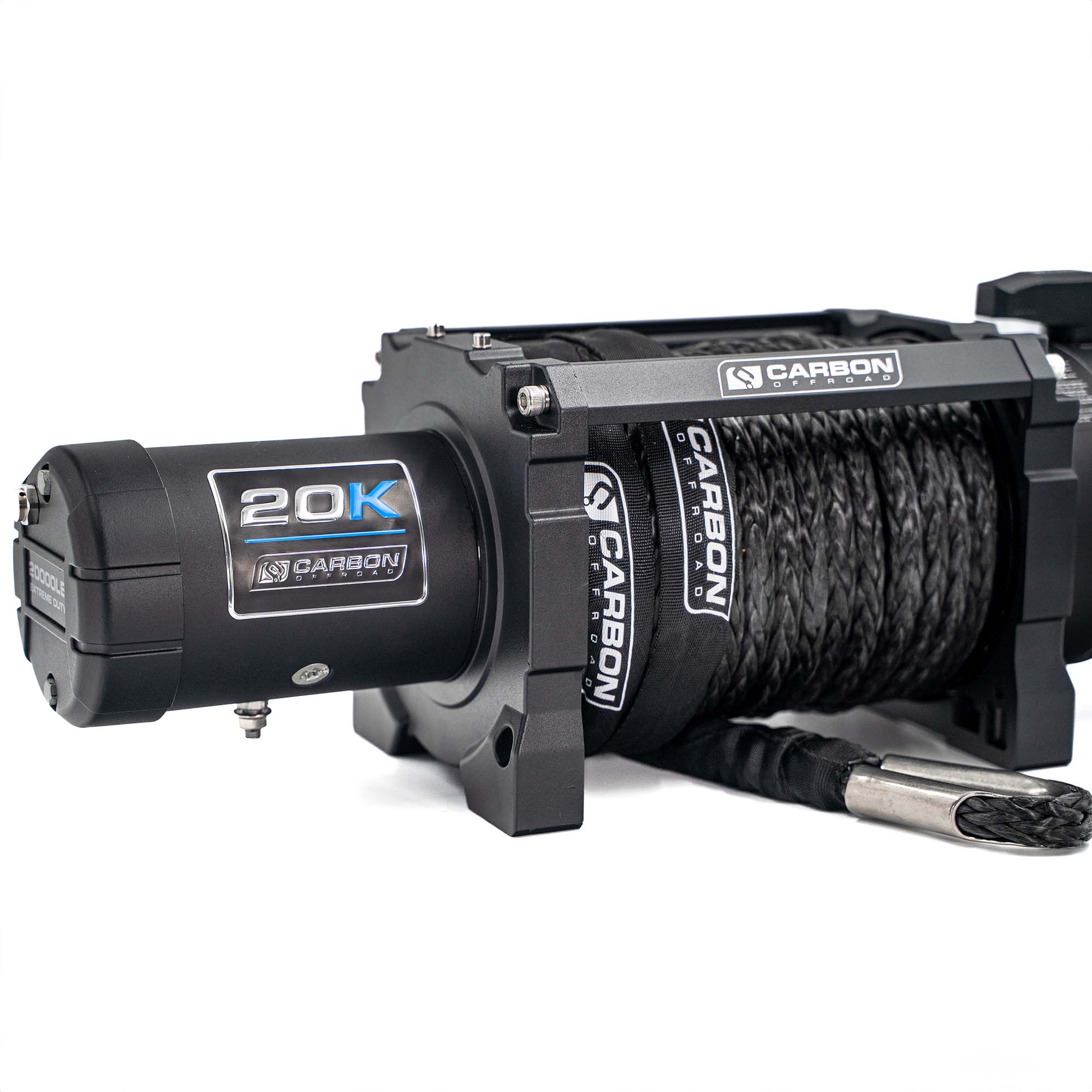

Carbon Scout Pro - 20000lb Extreme Duty Truck Winch 24V - BYO Hook

Extreme Duty Truck Recovery

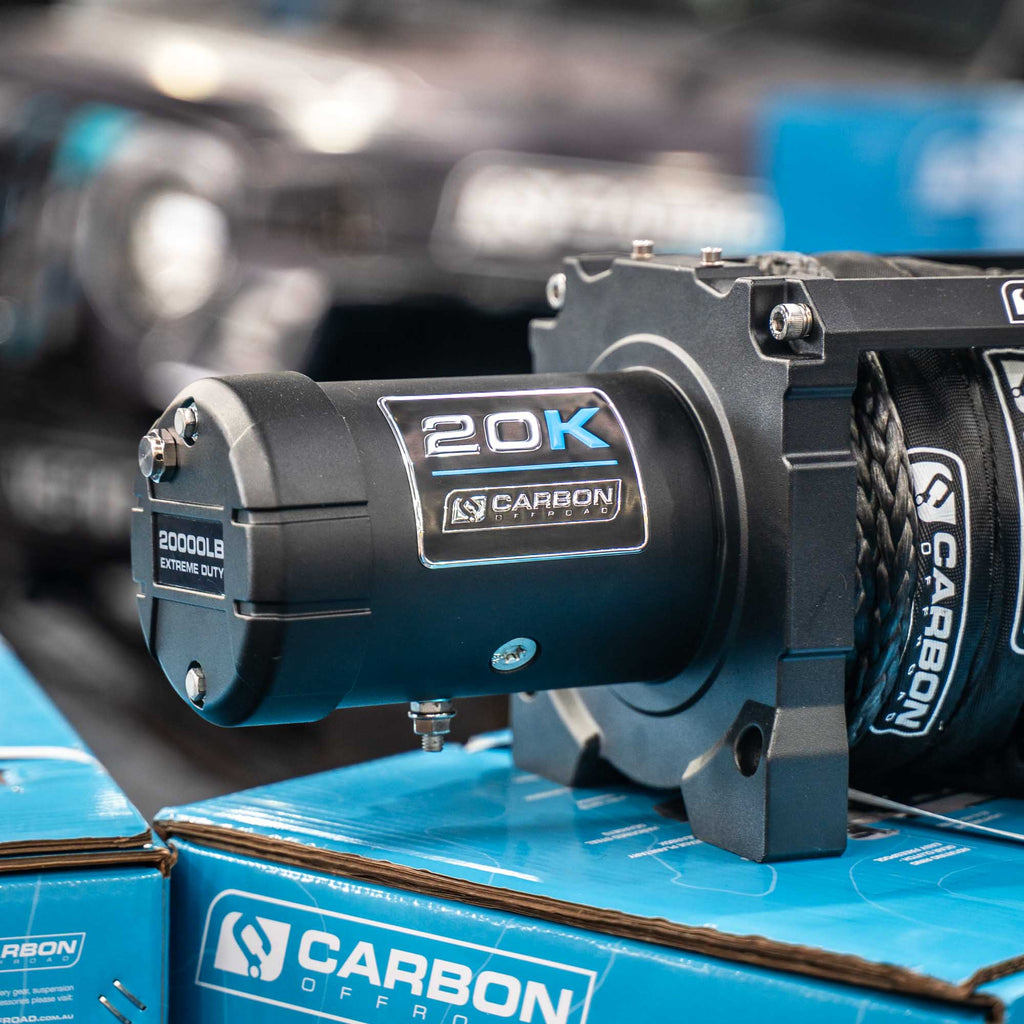

The Carbon Offroad Scout Pro 20000lb Extreme Duty Truck Winch 24V - BYO Hook delivers a high-performance recovery solution with 9072kg (20000lbs) of pulling capacity via a 24V DC 7 HP series wound motor.

Engineered for the Outback

Please Note: This listing is for the winch only. No hook or soft shackle is included in this package. The winch comes with the winch accessory kit only, perfect if you already have a hook.

The all-new feature-packed Version 3 Carbon 20K 24v Winch delivers a high-performance recovery solution trusted by 4WD enthusiasts across Australia. Designed to make your installation easier and your recoveries safer, this winch features a robust construction, advanced waterproofing, and dependable electronics that work when you need them most.

With an upgraded IP68 rating, you can confidently take on water crossings, mud runs, and everything in between. A breathable membrane motor breather handles temperature fluctuations, while your recoveries are powered via both wireless and wired remotes (both included), keeping you safe in the driver's seat.

IP68 Explained: 6: Complete protection against dust and dirt. 8: Water submersible up to 1.5m for 30 minutes (not during operation).

Whether you're tackling Tassie's toughest tracks or cruising up to Cape York, the Carbon Winch is a proven performer. It is backed by a 5-year electrical and water ingress warranty, plus a lifetime geartrain warranty, with a full range of spare parts stocked right here in Australia.

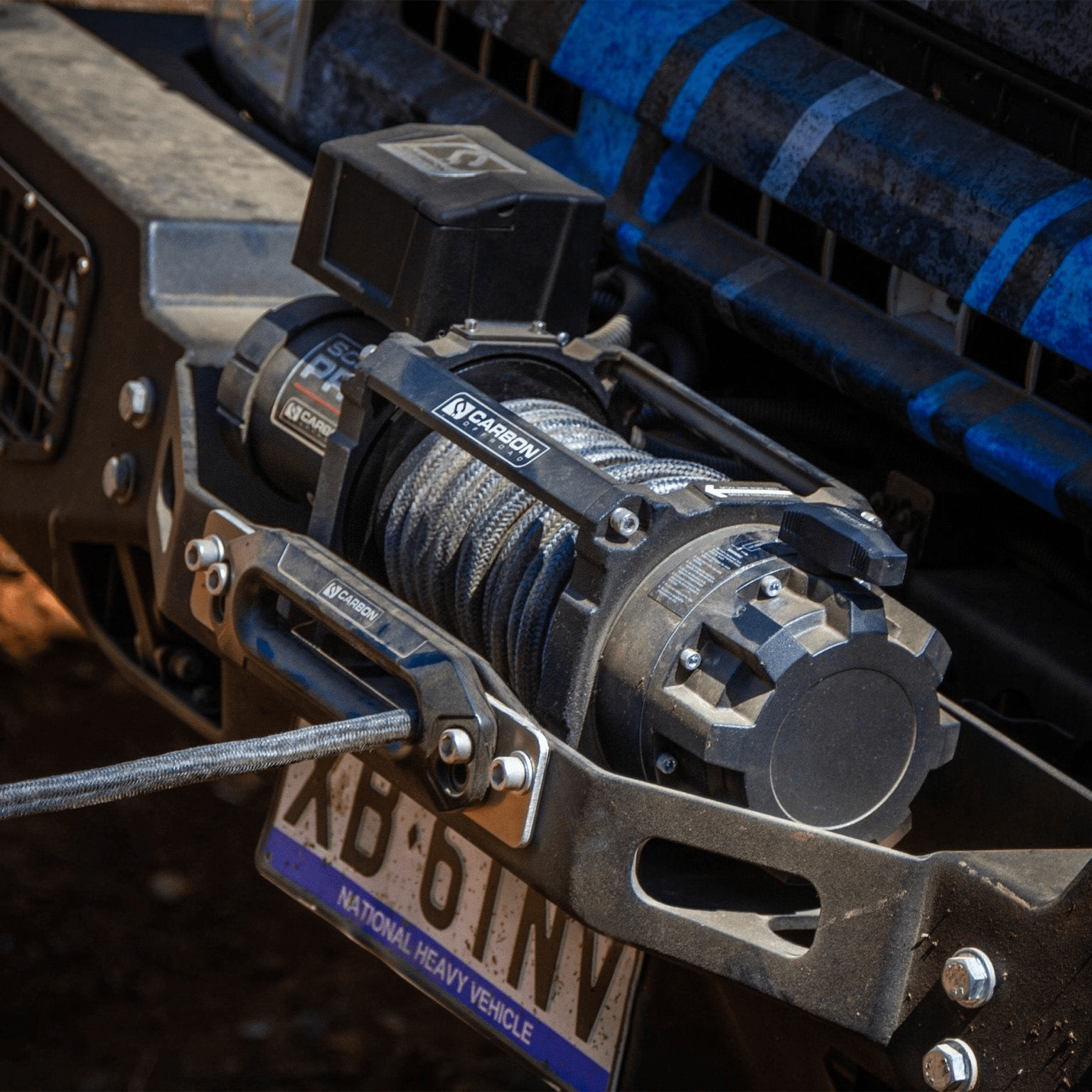

Installation is made easy with clear instructions, and an included isolator switch with extra cabling ensures your winch is powered off when not in use. Mount the control box your way, on the winch, above the drum, or remotely on your vehicle using the multi-fit bracket system.

You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

At just 31.7kg (69.9lbs), this is one of the lightest 20K 24v winches in its class, ideal for keeping your GVM in check without compromising on performance.

Technical Features

• Geartrain: 3-Stage Planetary with 354:1 gear ratio.

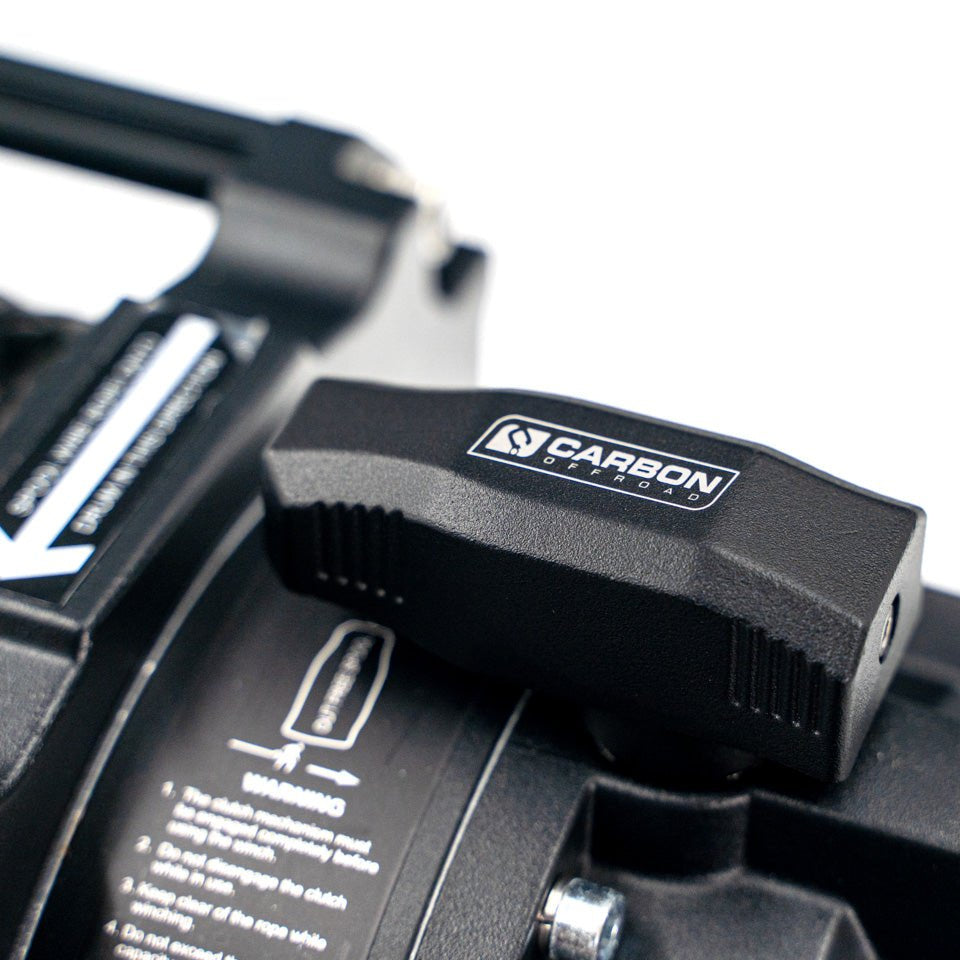

• Clutch: Rotating Ring Gear.
• Brake: Automatic brake in the motor bracket.
• Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead.
• Control: Wired remote with 3.6m (11.8ft) lead and wireless remote included.
• Power Requirement: Recommended battery 650 CCA minimum for winching.
• Warranty: Lifetime Mechanical, 5 Year Electrical, and 5 Year Water Ingress Protection Warranty.

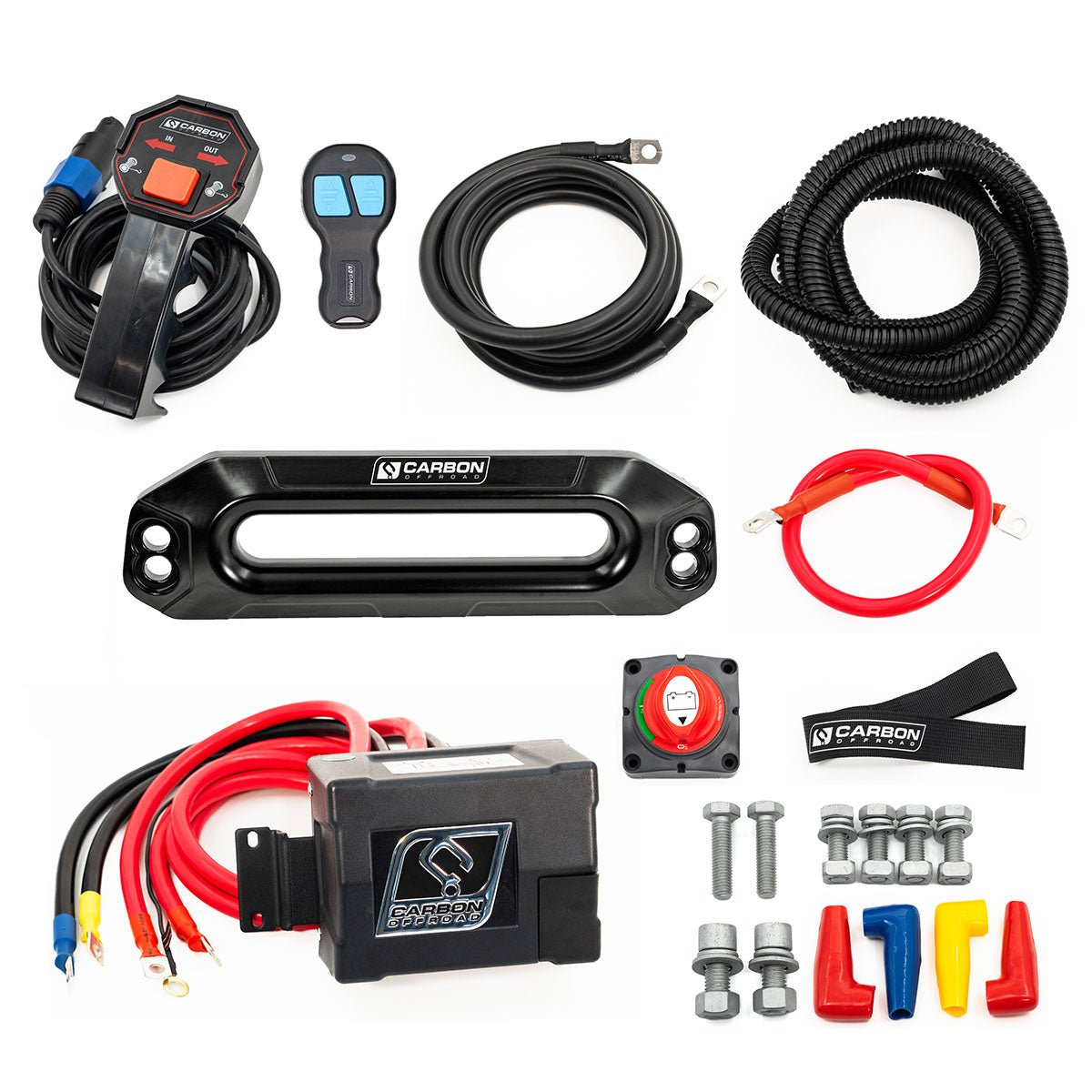

Contents

1 x Carbon Scout Pro 20000lb Extreme Duty Truck Winch 24V - BYO Hook

1 x Synthetic Rope (13mm x 25m)

1 x Wired Remote Control

1 x Wireless Remote Control

1 x Carbon Offroad MEGAPRO Fairlead

1 x Control Box with Cables

1 x Mounting Bolts Kit

1 x Isolator Switch
