Extreme Duty Recovery Power

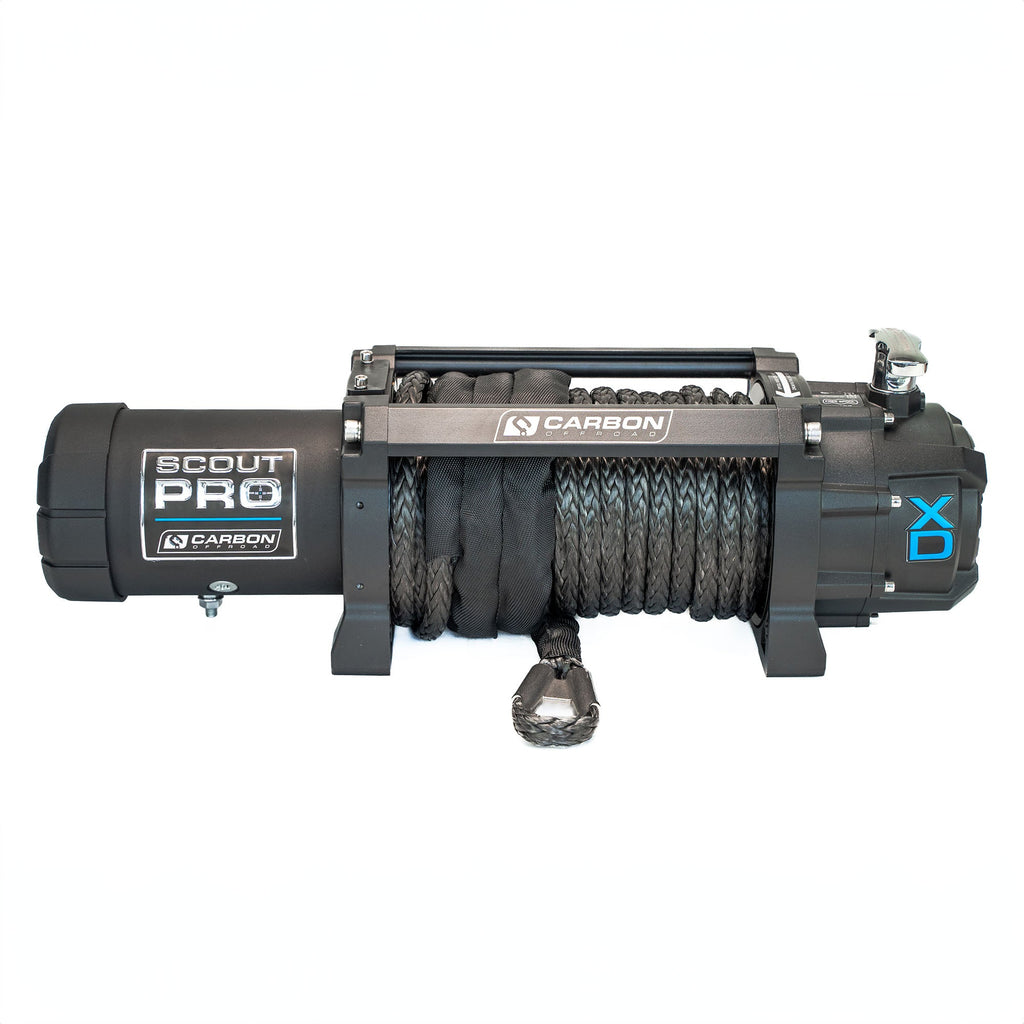

The Carbon Offroad Scout Pro XD10 is a high-performance 12V 10000lbs electric recovery winch built to handle regular off-road recovery work in the most demanding environments.
⚠️ PLEASE NOTE: WINCH ONLY CONFIGURATION
This listing is for the winch unit only (with synthetic rope attached). Accessories such as remotes, isolator switches, hooks, external cabling, fairleads, and mounting hardware are not included unless stated elsewhere. This is the ideal option for replacing an existing unit or for custom builds where you already have the necessary control accessories.
Overview
Engineered for the Outback. If you have a bull bar rated to 10K, the Carbon XD10 allows you to stay within manufacturer specifications while retaining your warranty. As part of the Scout Pro Extreme Duty Performance Series, it is specifically designed to suit heavier vehicles operating in harsh Australian conditions.
For ultimate control, you can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for seamless integration with the Scout Pro series.
Features
-
Rugged Construction: Built to Scout Pro Extreme Duty Performance Series standards, featuring 316 stainless steel hardware and a durable matte black powder coat finish.
-
Advanced Clutch: Features a rotating ring gear clutch with a premium chrome freespool handle etched with the Carbon Offroad logo.
-
Optimised Drum: The checker-knurled winch drum provides superior grip for the synthetic rope, ensuring consistent performance under heavy load.
-
Performance Geartrain: Utilises a 3-stage planetary geartrain with a 180:1 gear ratio for balanced line speed and pulling power.
-
Safety First: Equipped with an automatic brake located in the motor bracket to ensure secure load holding during technical recoveries.
Contents
1 x Carbon Offroad Scout Pro XD10 10000lb Winch Unit (Version 3)
1 x Synthetic Winch Rope (24m x 10mm / 78.7ft x 3/8" attached to drum)
1 x Winch Mounting Bolt Kit (Mounting bolts, nuts, and washers)
| Feature |
Specification Metric (Imperial) |
| Part Number |
CW-XD10V3WO |
| Rated Line Pull |
4536kg (10000lbs) single-line |
| Motor |
12V DC 6.0 HP series wound (24V available) |
| Geartrain |
3-Stage Planetary |
| Gear Ratio |
180:1 |
| Clutch |
Rotating ring gear clutch |
| Brake |
Automatic brake in the motor bracket |
| Synthetic Rope |
24m x 10mm (78.7ft x 3/8") |
| Hardware |
316 stainless steel |
| Drum Dimensions |
63mm x 224mm (2.48" x 8.8") |
| Mounting Bolt Pattern |
254mm x 114.3mm (10.0" x 4.5") |
| Recommended Battery |
650 CCA minimum for winching |
| Winch Dimensions (L x W x H) |
538 x 158 x 187mm (21.2" x 6.2" x 7.4") |
| Winch Weight (Bare) |
19.0kg (41.9 lbs) with synthetic rope attached |
12V DC Performance Specs
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Motor Current (Amps) |
Rated Line Pull Position lbs (kgs) |
| 0 |
31.8 (10.6) |
60 |
1 / 10000 (4540) |
| 4000 (1814) |
10.8 (3.8) |
190 |
2 / 8200 (3720) |
| 6000 (2722) |
8.5 (3.2) |
250 |
3 / 6840 (3103) |
| 8000 (3630) |
6.2 (2.6) |
- |
4 / 5820 (2640) |
| 10000 (4540) |
4.6 (2.1) |
370 |
- |
