High-Speed Performance Racing Winch
The Carbon Offroad Scout Pro RS Series winches are engineered for racing and high-line-speed operations. Designed specifically for applications where rapid recovery and precision controlled winching are paramount, the RS Series focuses on extreme motor output and aggressive gear reduction.
⚠️ PLEASE NOTE: WINCH ONLY CONFIGURATION
This listing is for the winch unit only (with synthetic rope attached). Accessories such as remotes, isolator switches, hooks, external cabling, fairleads, and mounting hardware are not included and must be sourced separately. This is ideal for competition rigs or custom builds requiring a bare high-performance unit.
Overview
The RS Series utilizes a shortened 2023 Version 3 winch chassis shared with the proven Carbon Offroad 12K platform. At its heart is a massive 8.0HP motor paired with a performance-tuned 80:1 gear ratio to deliver blistering line speeds that leave standard winches in the dust.
The RS9 comes spooled with an impressive 42m (137ft) of 8mm high-density pre-stretched UHMWPE synthetic rope, featuring a 14,000lb minimum breaking strain. Due to the increased length of the 8.0HP motor, please consult the technical drawings to confirm clearance and fitment prior to installation.
Features
-
Extreme Line Speed: Engineered with an 80:1 heavy-duty performance gearbox for ultra-fast recovery cycles.
-
Maximum Motor Output: Driven by an 8.0HP 12V series-wound electric motor.
-
High-Capacity Drum: Spooled with 42m (137ft) of 8mm UHMWPE synthetic winch rope, providing exceptional reach without the need for extensions.
-
Rugged V3 Chassis: Built on the shortened 2023 Version 3 chassis with IP68 rated water and dust sealing.
-
Heavy-Duty Termination: Features a HD braced rope thimble for secure and reliable end termination.
Contents

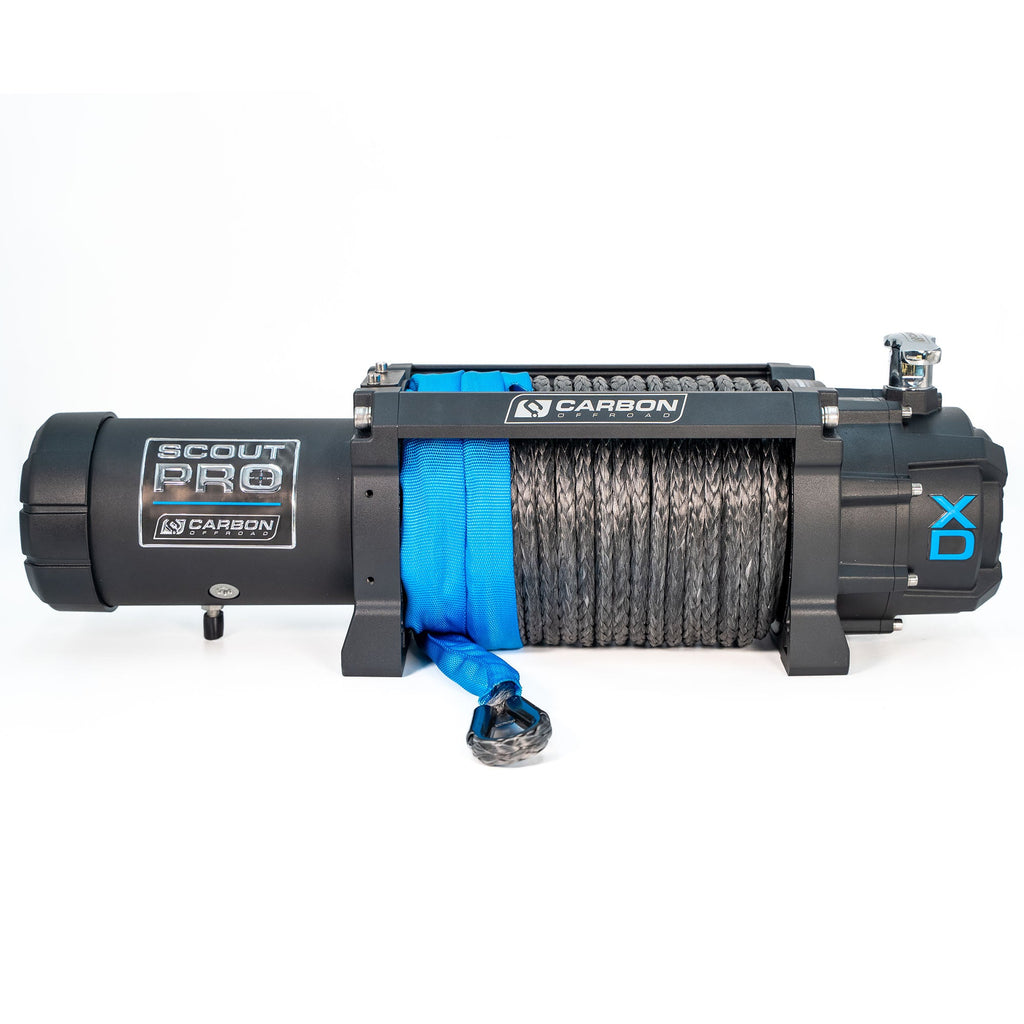

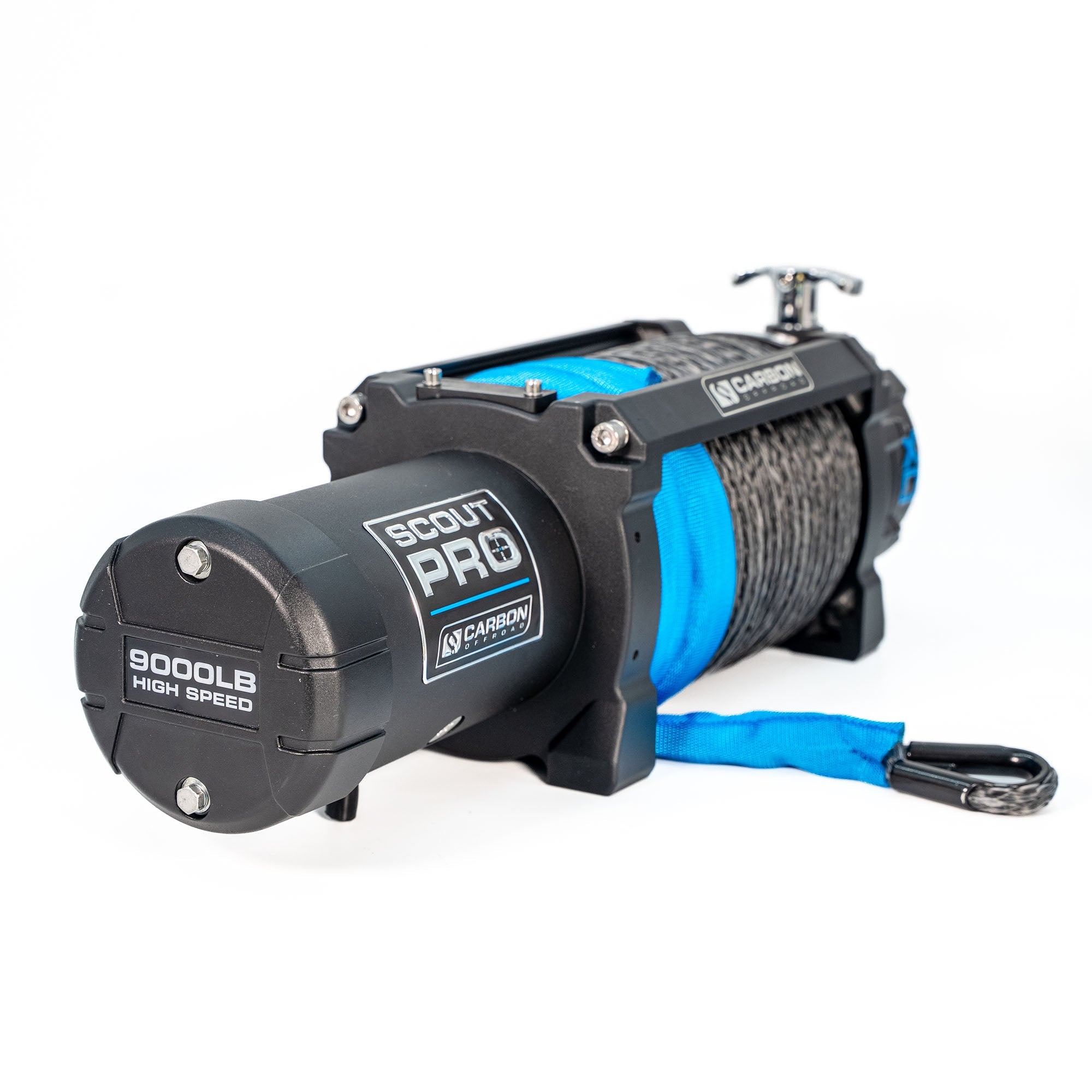

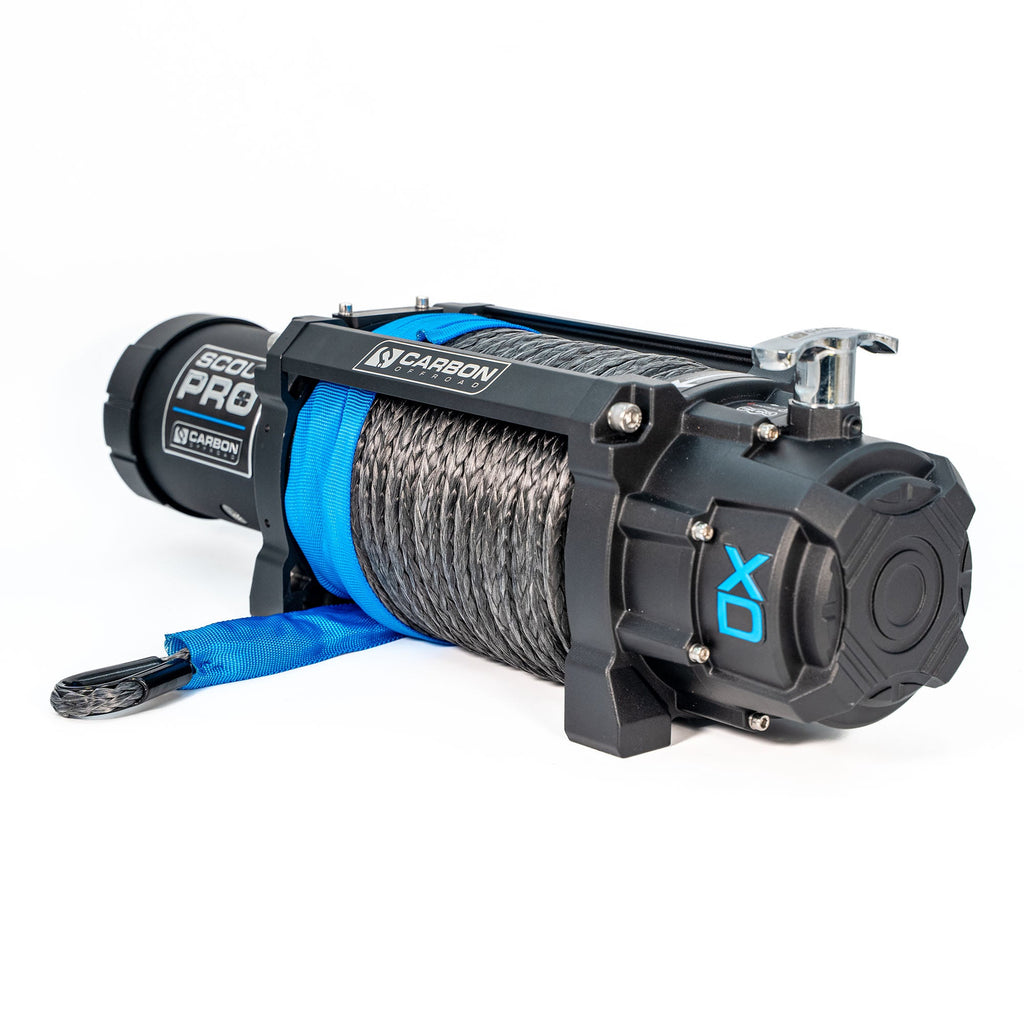

1 x Carbon Offroad RS9 9000lb Winch Unit (V3 Chassis)
1 x Synthetic Winch Rope (8mm x 42m attached to drum)
| Feature |
Specification Metric (Imperial) |
| Rated Line Pull |
4080kg (9000lbs) single-line |
| Motor |
8.0HP 12V Series-Wound |
| Gear Ratio |
80:1 Heavy-Duty Performance Gearing |
| Synthetic Rope |
8mm x 42m (5/16" x 137ft) |
| Rope Material |
Spectra™ Fiber Synthetic UHMWPE |
| Sealing |
IP68 Rated (Water & Dust) |
| Drum Dimensions |
63mm x 224mm (2.5" x 8.8") |
| Mounting Bolt Pattern |
254mm x 114.3mm (10" x 4.5") |
| Winch Dimensions (L x W x H) |
572mm x 158mm x 187mm (22.5" x 6.2" x 7.4") |
| Chassis |
Carbon Offroad Version 3 (V3) |
Performance Specs
| Line Pull Metric (Imperial) |
Line Speed Metric (Imperial) |
Motor Current (Amps) |
| 0kg (0lbs) |
24.2m/min (79.4fpm) |
55A |
| 1816kg (4000lbs) |
5.6m/min (18.4fpm) |
180A |
| 3180kg (7000lbs) |
4.2m/min (13.8fpm) |
310A |
| 4090kg (9000lbs) |
2.6m/min (8.5fpm) |
440A |
Rated Line Pull by Layer
| Layer |
Rated Line Pull Metric (Imperial) |
| 1 |
4090kg (9000lbs) |
| 2 |
3524kg (7760lbs) |
| 3 |
3040kg (6690lbs) |
| 4 |
2615kg (5760lbs) |
