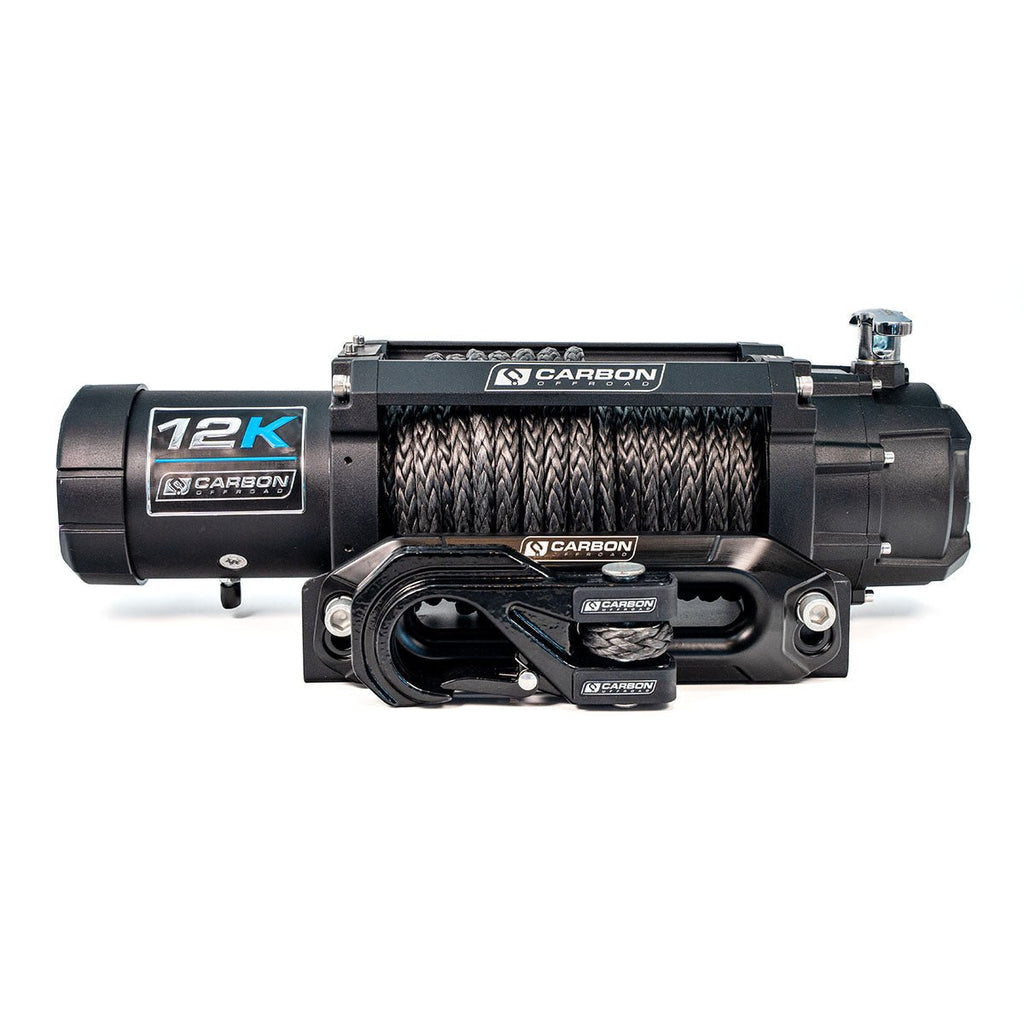

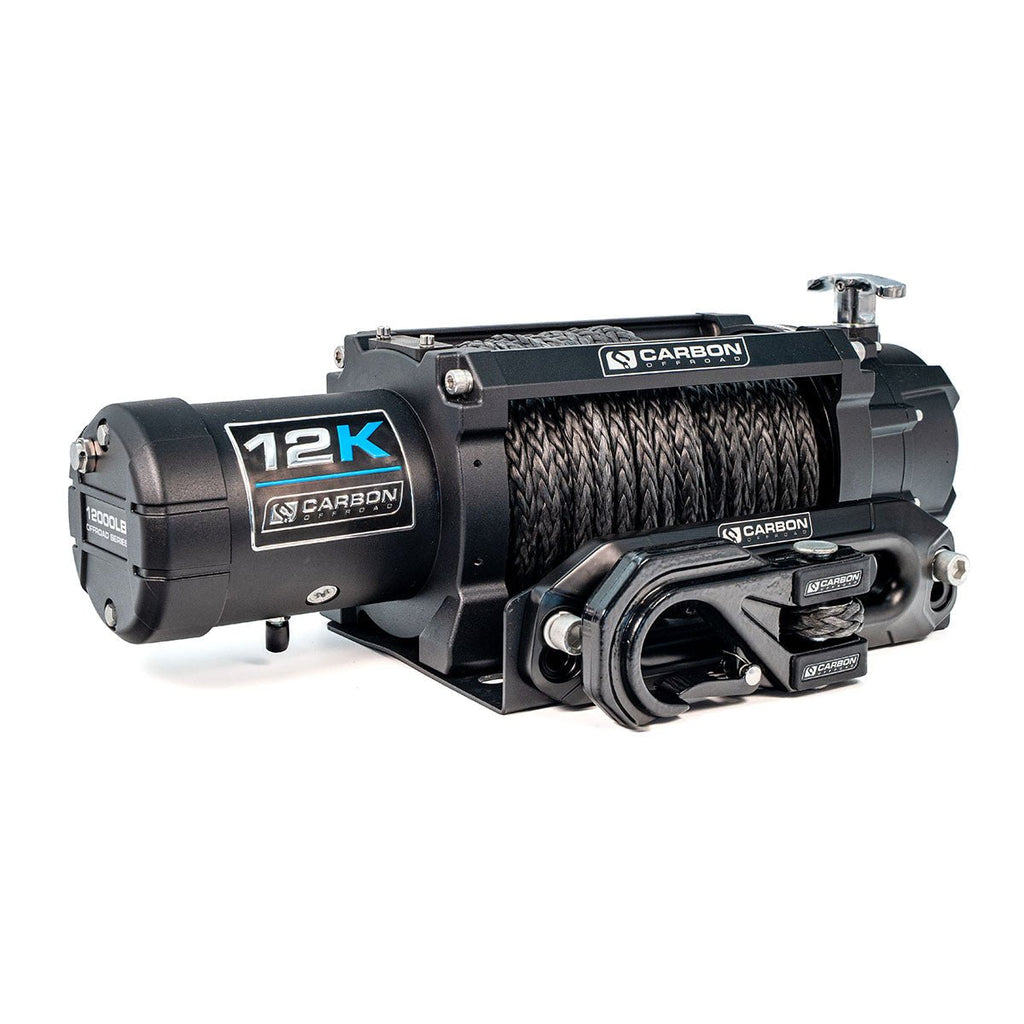

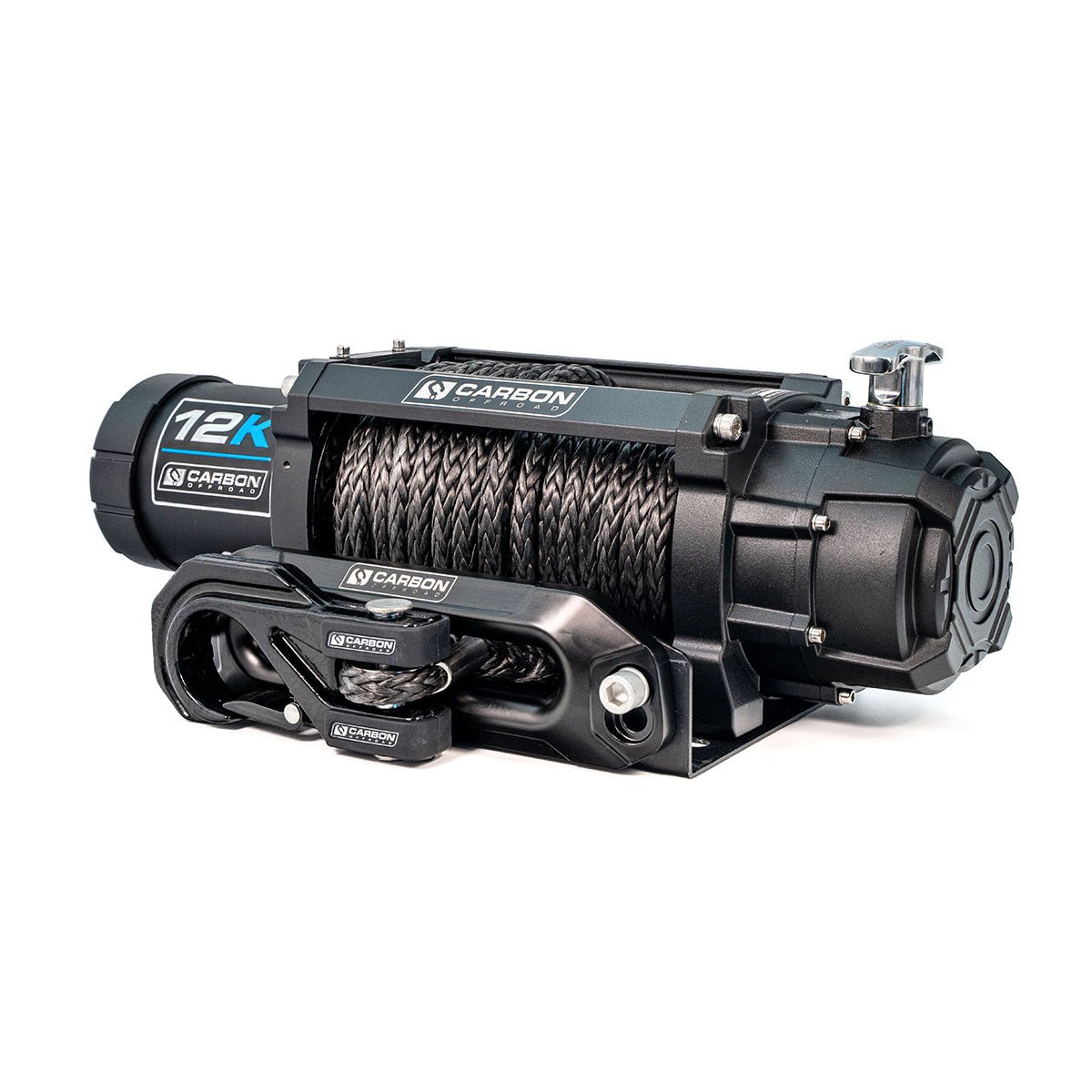

Lightweight High-Performance Winch
The Carbon 12K V3X is a lightweight, high-performance 12000lb (5450kg) electric winch designed to handle tough off-road conditions.
Overview
Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. River crossings and mud runs are stress free; this winch features a breathable membrane-style motor breather for heat expansion and contraction.
Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware—it’s ready for installation straight out of the box. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote from the safety and convenience of your driver's seat.
The Carbon 12K is a proven performer with countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind, it is backed here in Australia by a class-leading 5-year water ingress and electrical warranty, and a lifetime geartrain warranty. It is designed to meet the rugged demands of off-road and utility use in Australian conditions, delivering reliable performance and service life.
Features
-
Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 12V DC 6HP series wound motor.
-
IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).
-
Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.
-
Complete Installation Kit: Includes an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our robust MegaPro hook, plus an isolator switch with extra cabling for safety when not in use.
-
Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

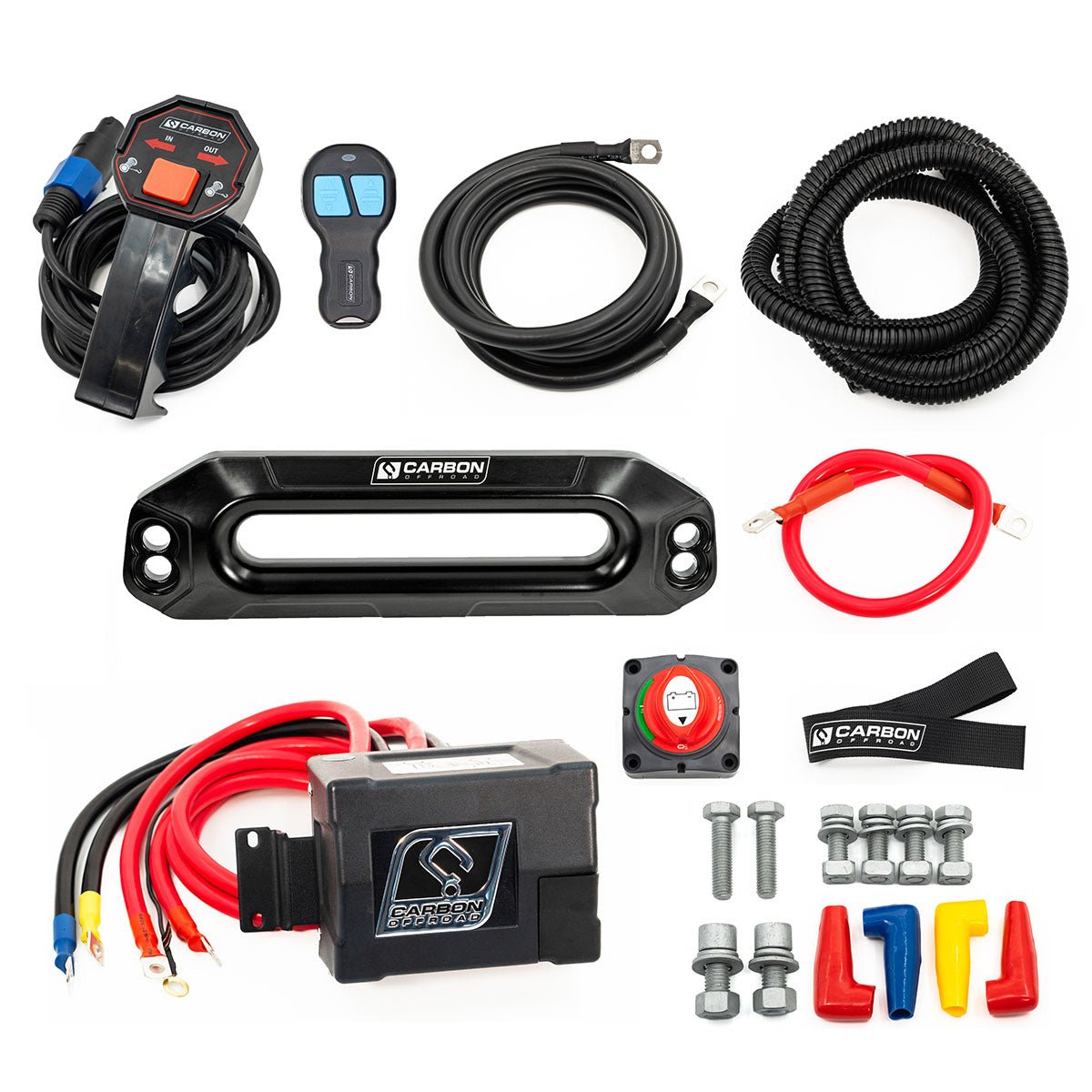

Contents
1 x Carbon 12K Winch V3X

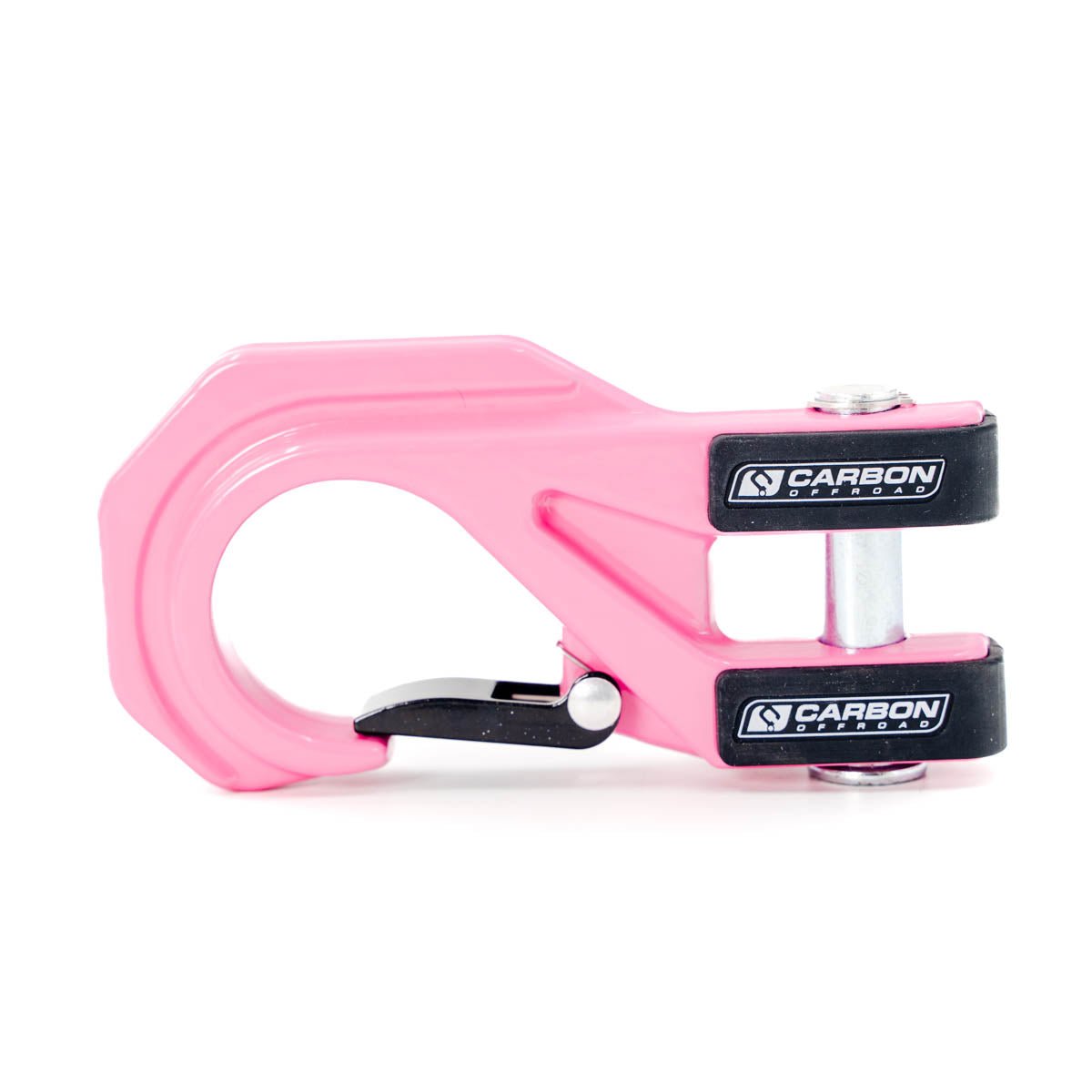

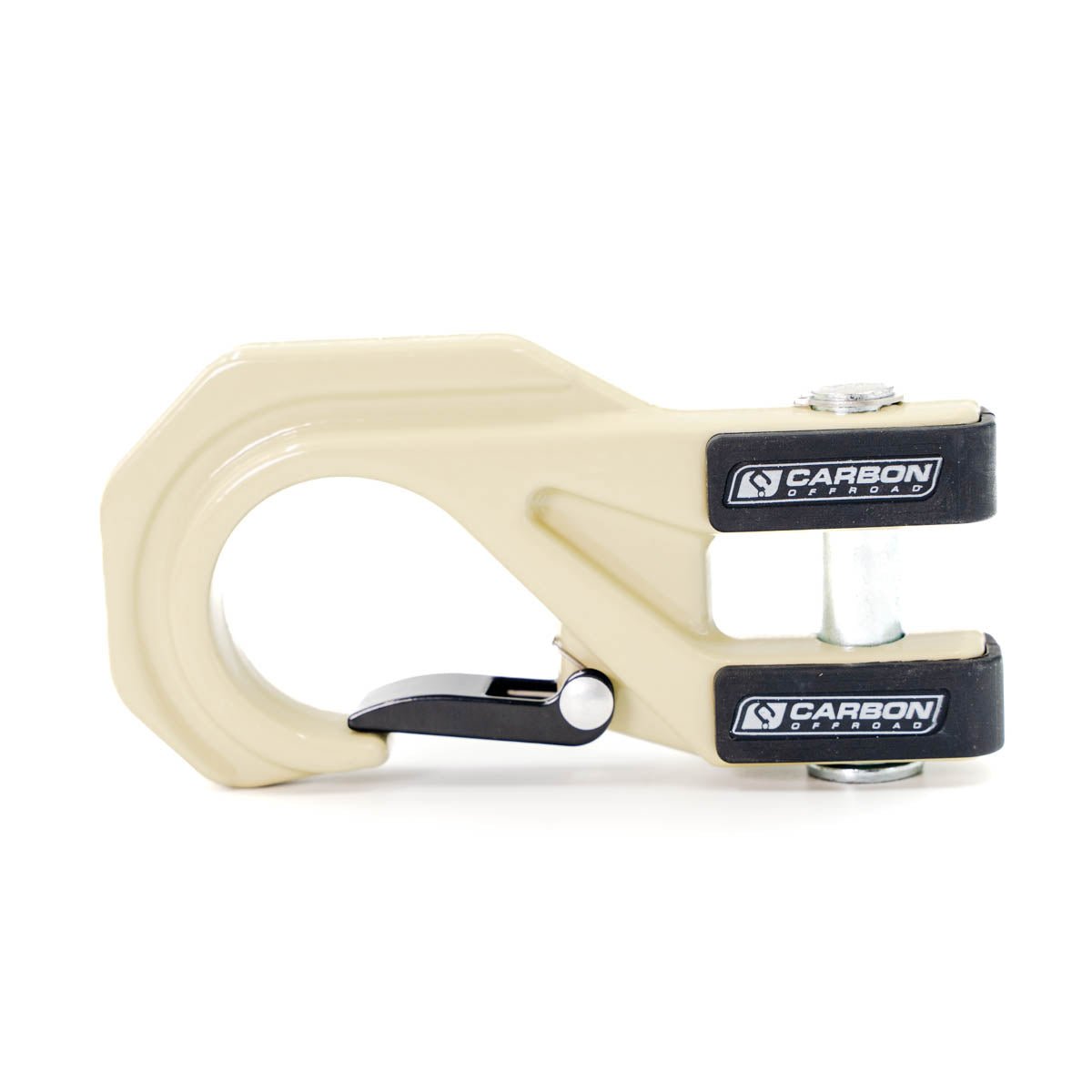

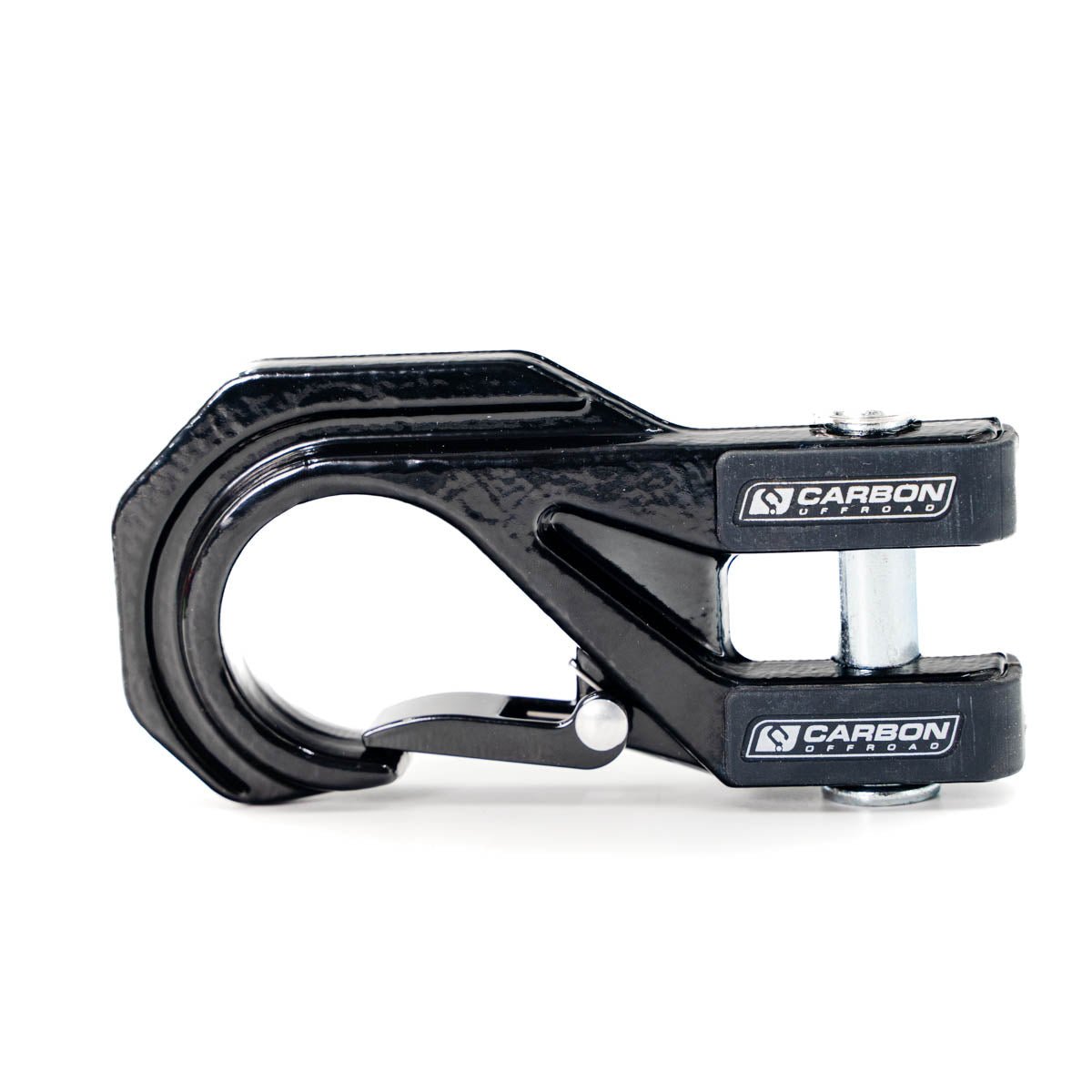

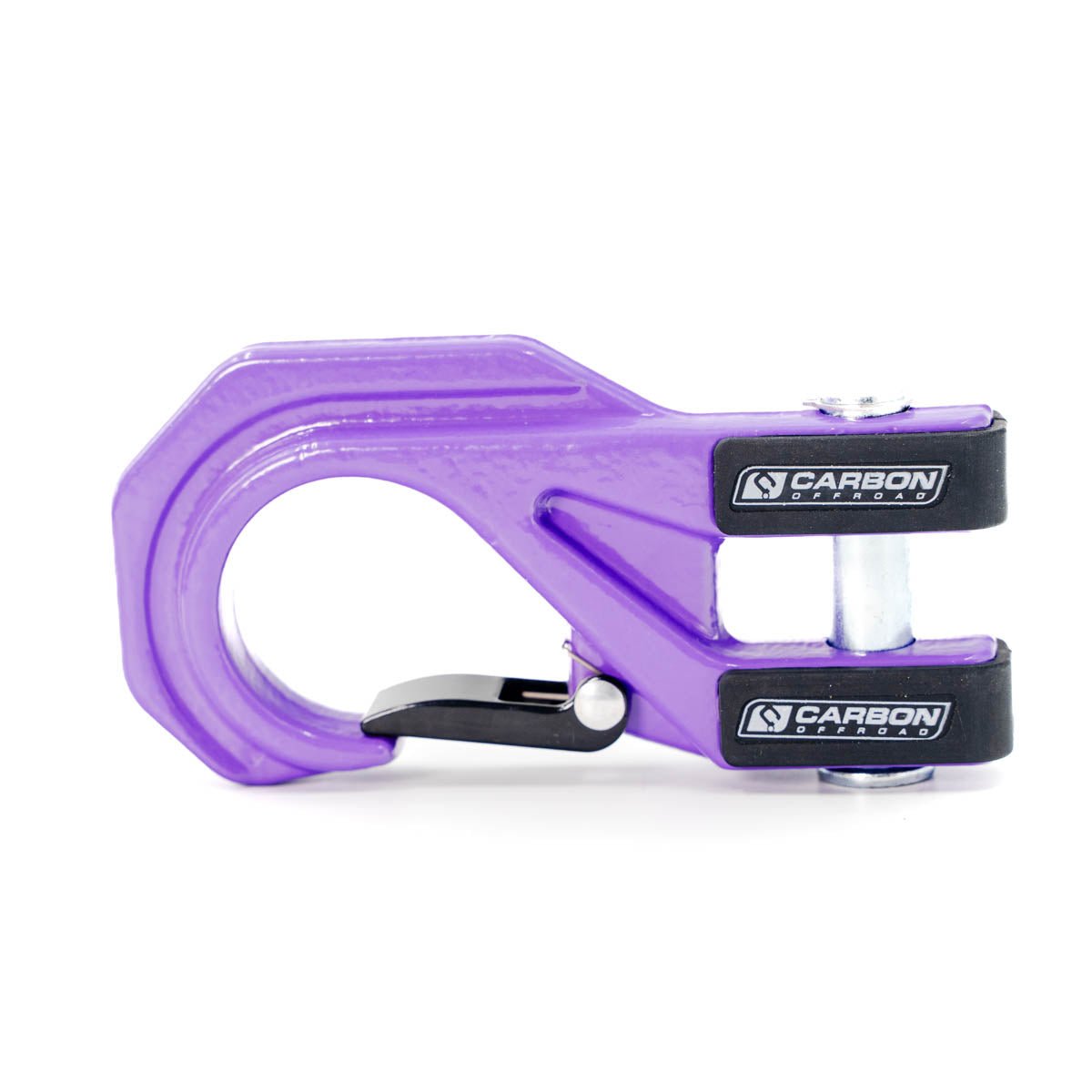

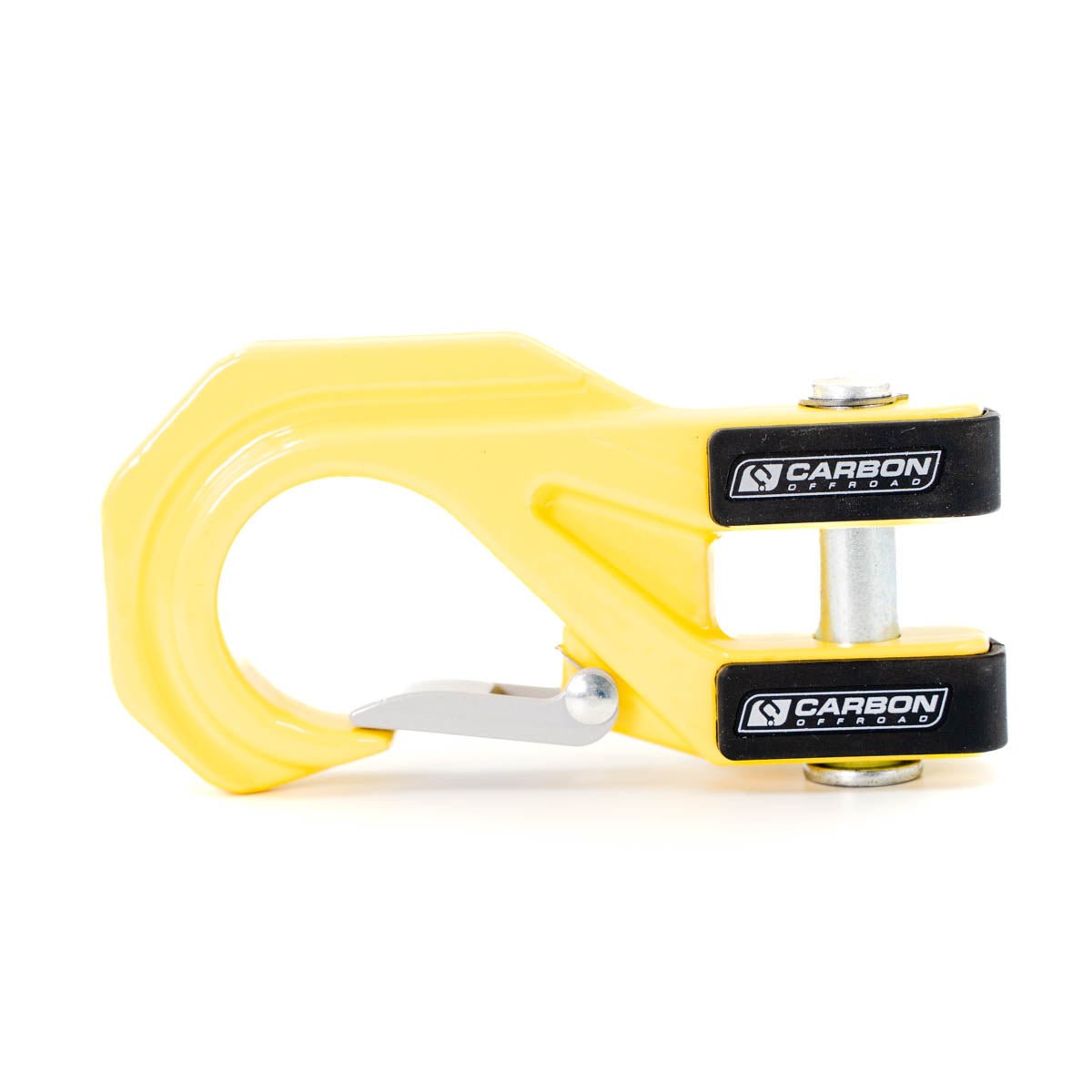

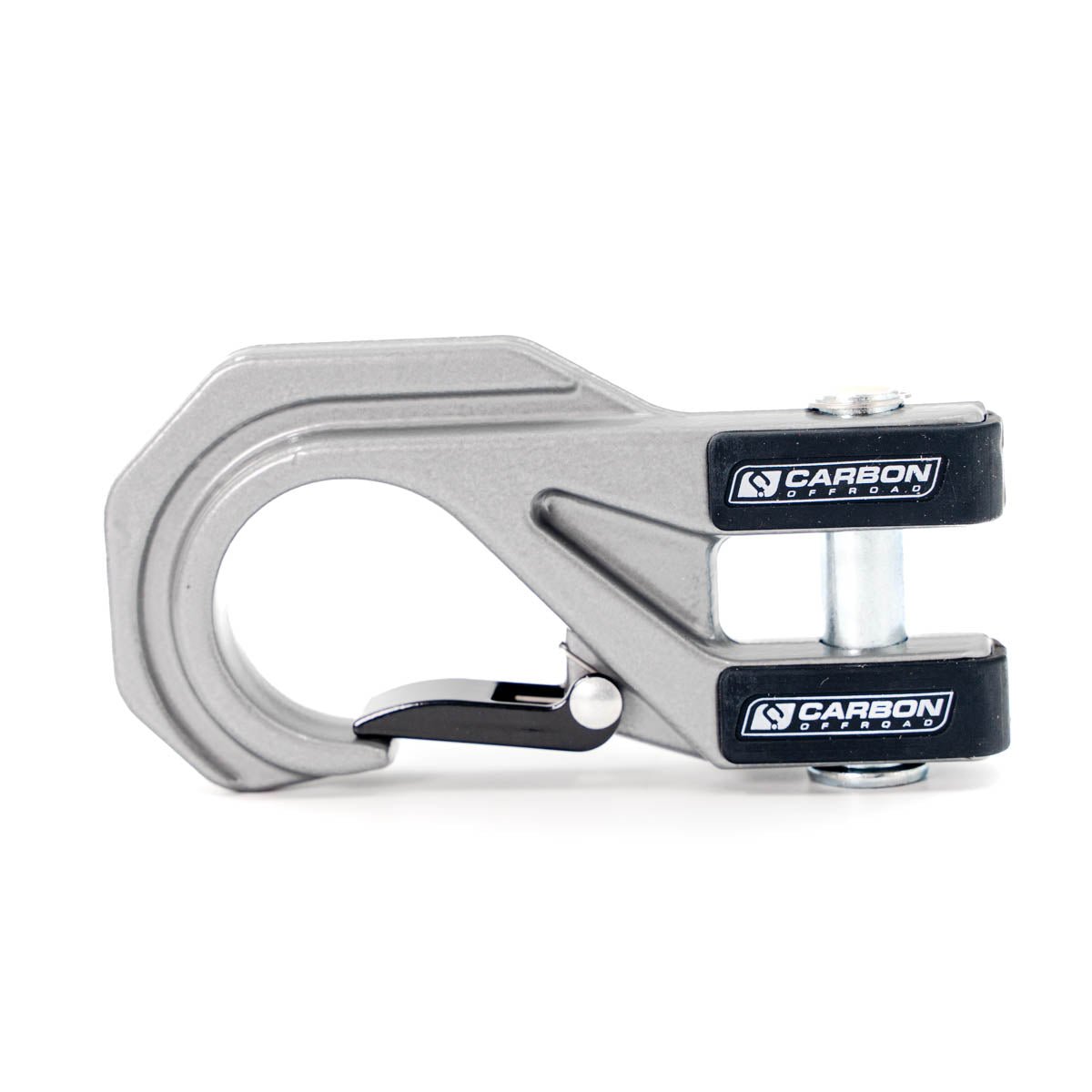

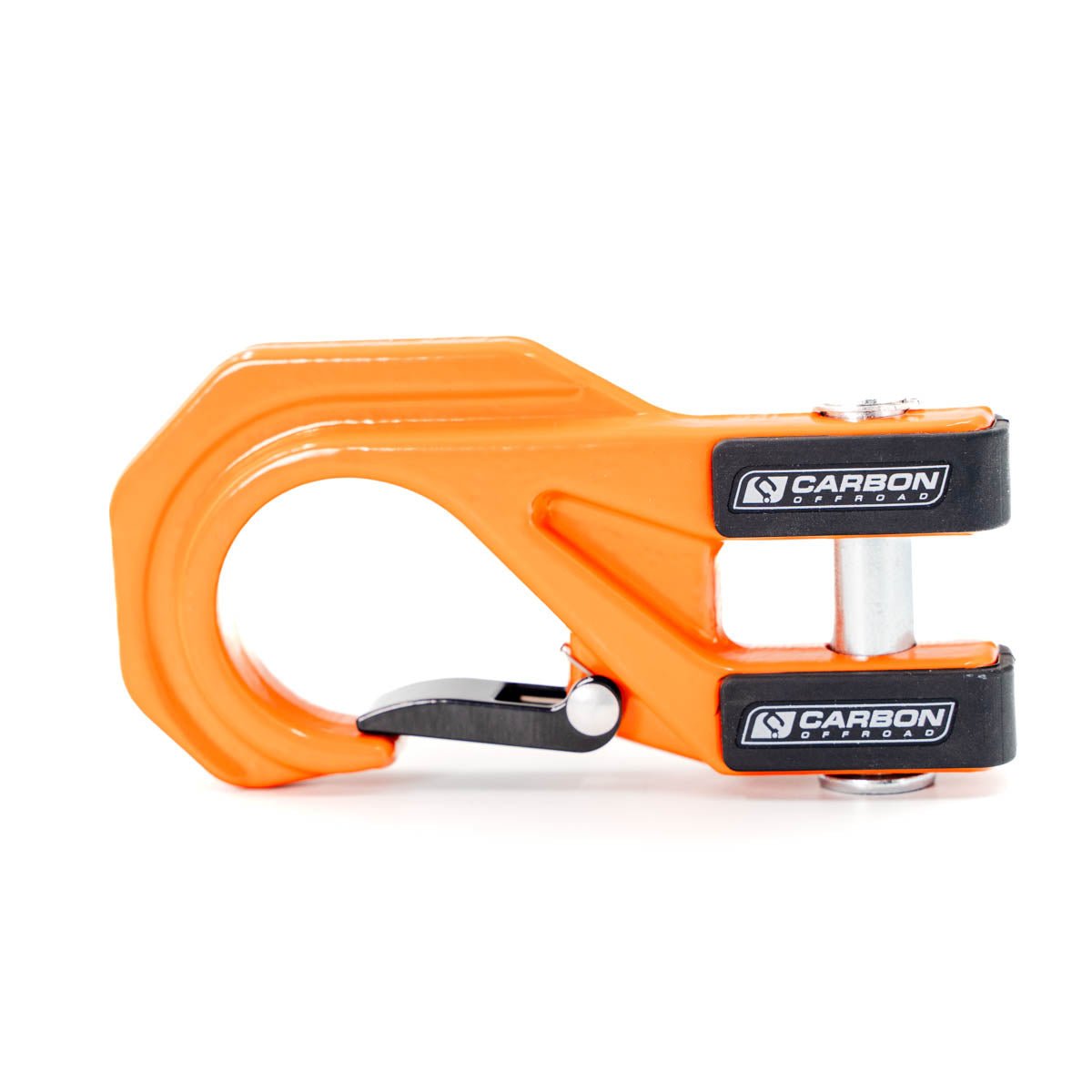

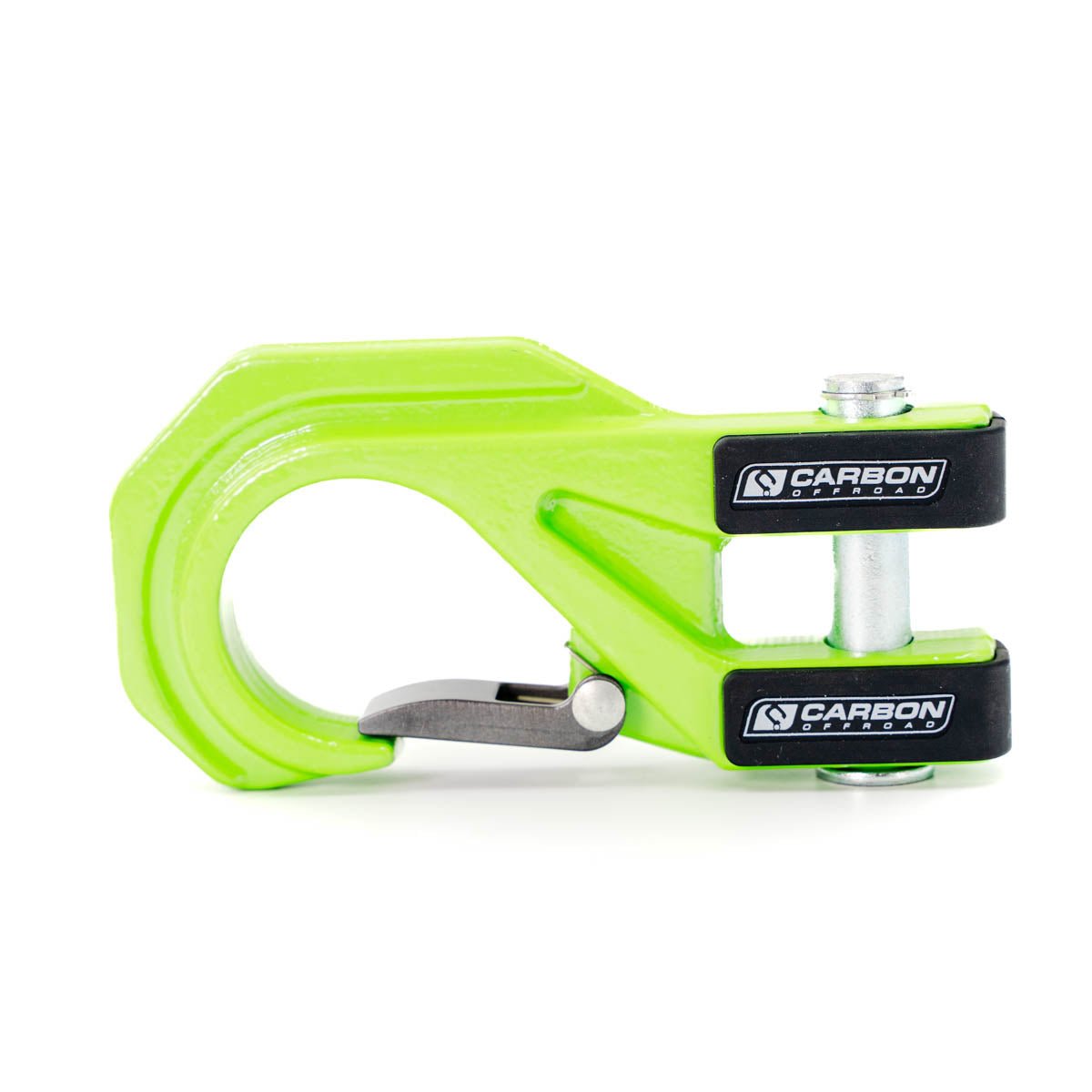

1 x MegaPro Hook
1 x Synthetic Rope (24m x 10mm diameter)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Wired Remote Control (12ft/3.7m lead)
1 x Wireless Remote Control
1 x Isolator Switch and Cabling
1 x Mounting Hardware Set
| Feature |
Specification Metric (Imperial) |
| Part Number |
CW-12KV3X |
| Rated Line Pull |
12000lbs (5450kg) single-line |
| Motor |
12V DC 6HP series wound motor |
| Geartrain |
3-Stage Planetary |
| Gear Ratio |
218:1 |
| Clutch (Free Spooling) |

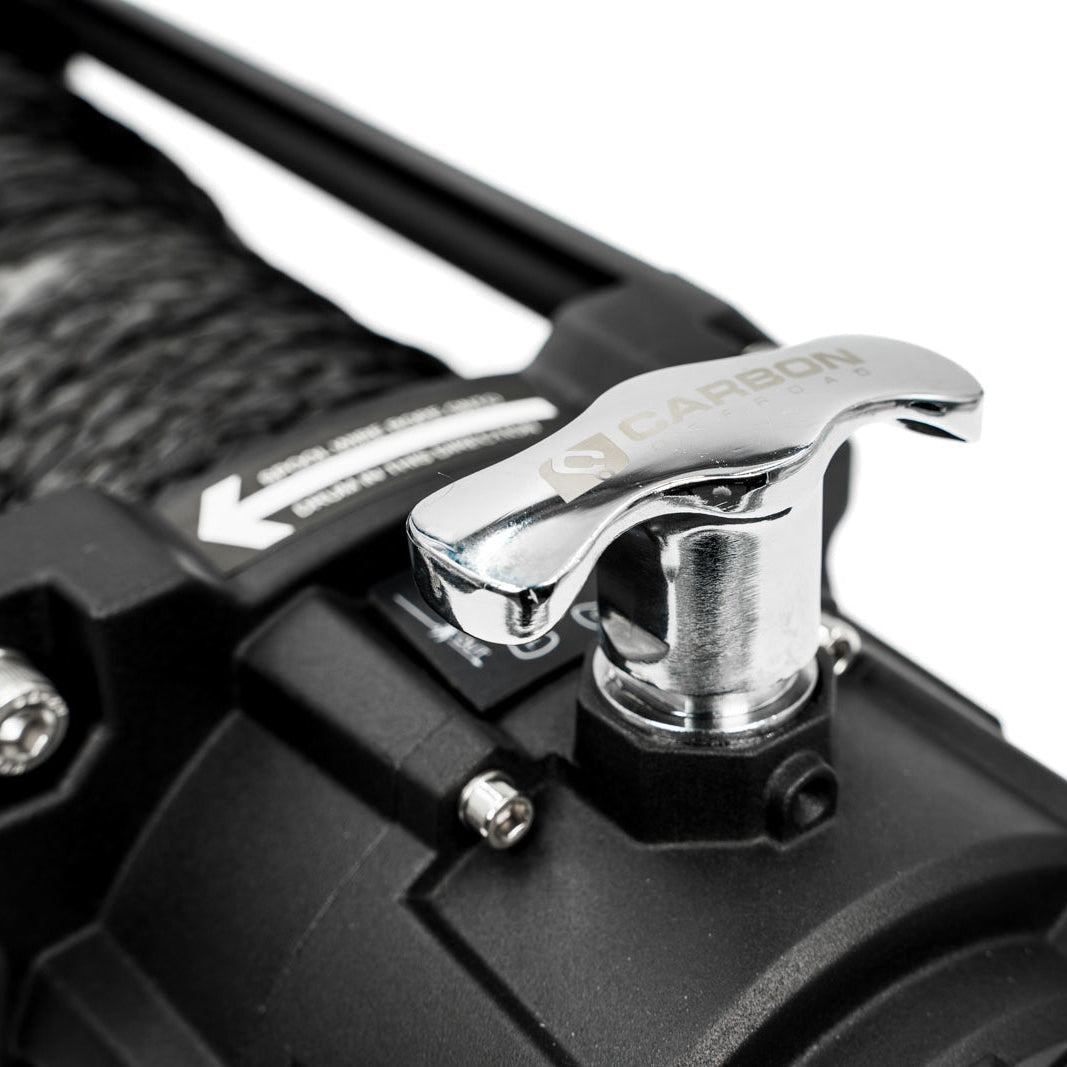

Rotating Ring Gear clutch with manual pull and twist handle |
| Brake |
Full load automatic brake (installed in motor housing end plate) |
| Drum Diameter/Length |
63mm x 224mm |
| Mounting Bolt Pattern |
254mm x 114.3mm |
| Recommended Battery |
650 CCA minimum for winching |
| Winch Dimensions (L x W x H) |
538 x 158 x 187mm (21.2" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) |
580 x 200 x 220mm (22.8" x 7.9" x 8.7") |
| Winch Weight (Version 3X) |
19.7kg (with synthetic rope attached) |
| Total Kit Weight |
26.65kg (including rope, control box, cables, bolts & fairlead) |
12V DC Performance Specs
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Motor Current (Amps) |
Rated Line Pull Position lbs (kgs) |
| 0 |
31.2 (9.5) |
60 |
1 / 12000 (5450) |
| 3000 (1360) |
15.4 (4.7) |
135 |
2 / 9800 (4450) |
| 6000 (2725) |
11.8 (3.6) |
220 |
3 / 8300 (3770) |
| 9000 (4090) |
8.5 (2.6) |
285 |
4 / 7200 (3270) |
| 12000 (4540) |
5.6 (1.7) |
340 |
|
