Lightweight High-Performance Winch

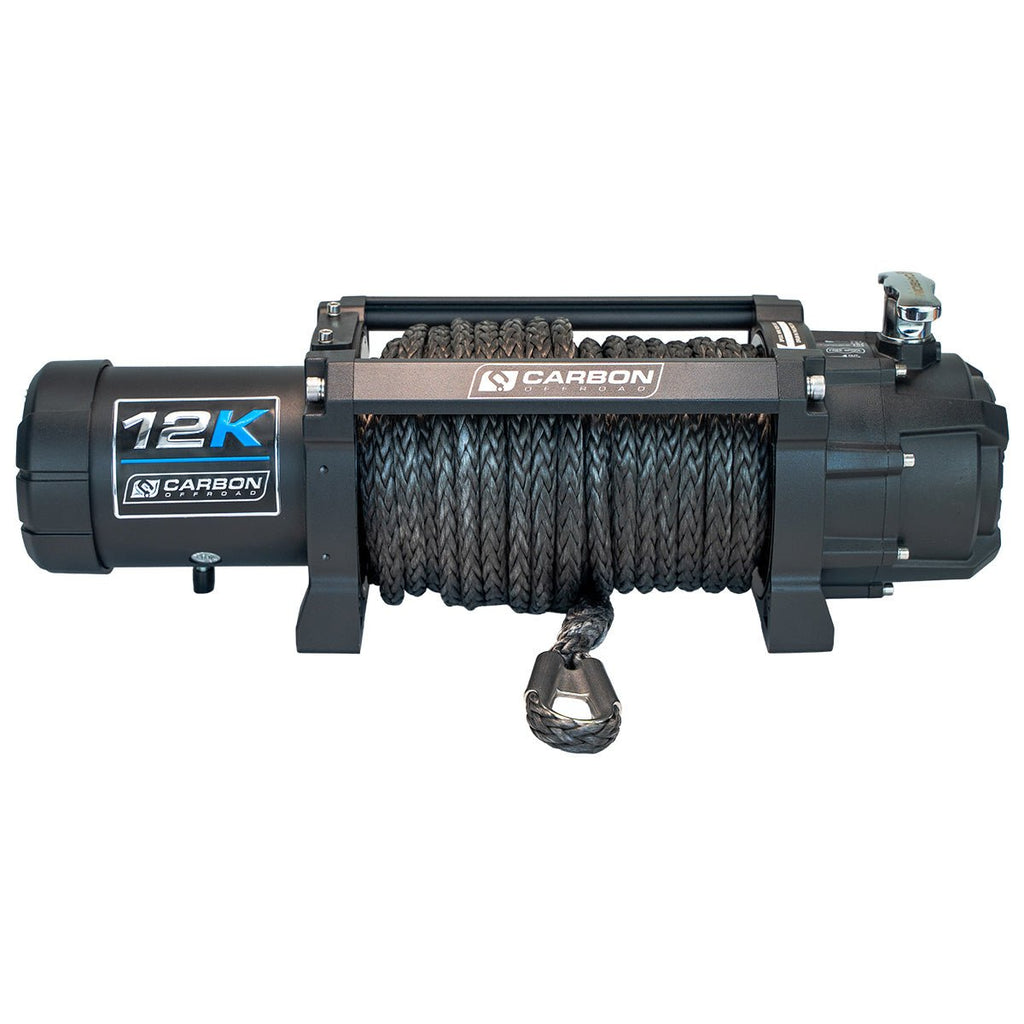

The Carbon 12K V3X is a lightweight, high-performance 12000lb (5450kg) electric winch designed to handle tough off-road conditions.
Overview
PLEASE NOTE: THIS ITEM IS WINCH ONLY. Accessories including remotes, synthetic rope, fairlead, hook, isolator switch, cabling, and mounting hardware are not included and must be sourced separately.
Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it is built for consistent pulling power through mud, sand, and steep terrain. River crossings and mud runs are stress free. This winch features a breathable membrane-style motor breather for heat expansion and contraction.
The Carbon 12K is a proven performer with extensive use across Australian off-road environments. For peace of mind, it is backed in Australia by a class-leading 5-year water ingress and electrical warranty, and a lifetime geartrain warranty. The Carbon 12K is designed to meet the rugged demands of off-road and utility use in Australian conditions, delivering reliable performance and service life when correctly installed.
Features
-
Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 12V DC 6HP series wound motor.
-
IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).
-
Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.
-
Automatic Braking: Includes a full load automatic brake installed in the motor housing end plate for safety and control.
-
Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Contents
1 x Carbon 12K Winch (Winch Only V3X)
Note: Supplied as a bare unit. Accessories and control boxes must be selected separately to suit the vehicle and application.
| Feature |
Specification Metric (Imperial) |
| Part Number |
CW-12KV3X |
| Rated Line Pull |
12000lbs (5450kg) single-line |
| Motor |
12V DC 6HP series wound motor |
| Geartrain |
3-Stage Planetary |
| Gear Ratio |
218:1 |
| Clutch (Free Spooling) |
Rotating Ring Gear clutch with manual pull and twist handle |
| Brake |
Full load automatic brake (installed in motor housing end plate) |
| Drum Diameter/Length |
63mm x 224mm |
| Mounting Bolt Pattern |
254mm x 114.3mm |
| Recommended Battery |
650 CCA minimum for winching |
| Winch Dimensions (L x W x H) |
538 x 158 x 187mm (21.2" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) |
580 x 200 x 220mm (22.8" x 7.9" x 8.7") |
| Winch Weight (Version 3X) |
19.7kg (with synthetic rope attached) |
12V DC Performance Specs
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Motor Current (Amps) |
Rated Line Pull Position lbs (kgs) |
| 0 |
31.2 (9.5) |
60 |
1 / 12000 (5450) |
| 3000 (1360) |
15.4 (4.7) |
135 |
2 / 9800 (4450) |
| 6000 (2725) |
11.8 (3.6) |
220 |
3 / 8300 (3770) |
| 9000 (4090) |
8.5 (2.6) |
285 |
4 / 7200 (3270) |
| 12000 (5450) |
5.6 (1.7) |
340 |
|
