Aluminium Rear Bar — Ford Ranger Next Gen (2022–On)
Includes RIVAL Spotlights (Set of 2)
Installation Manual
Weight: 45 kg

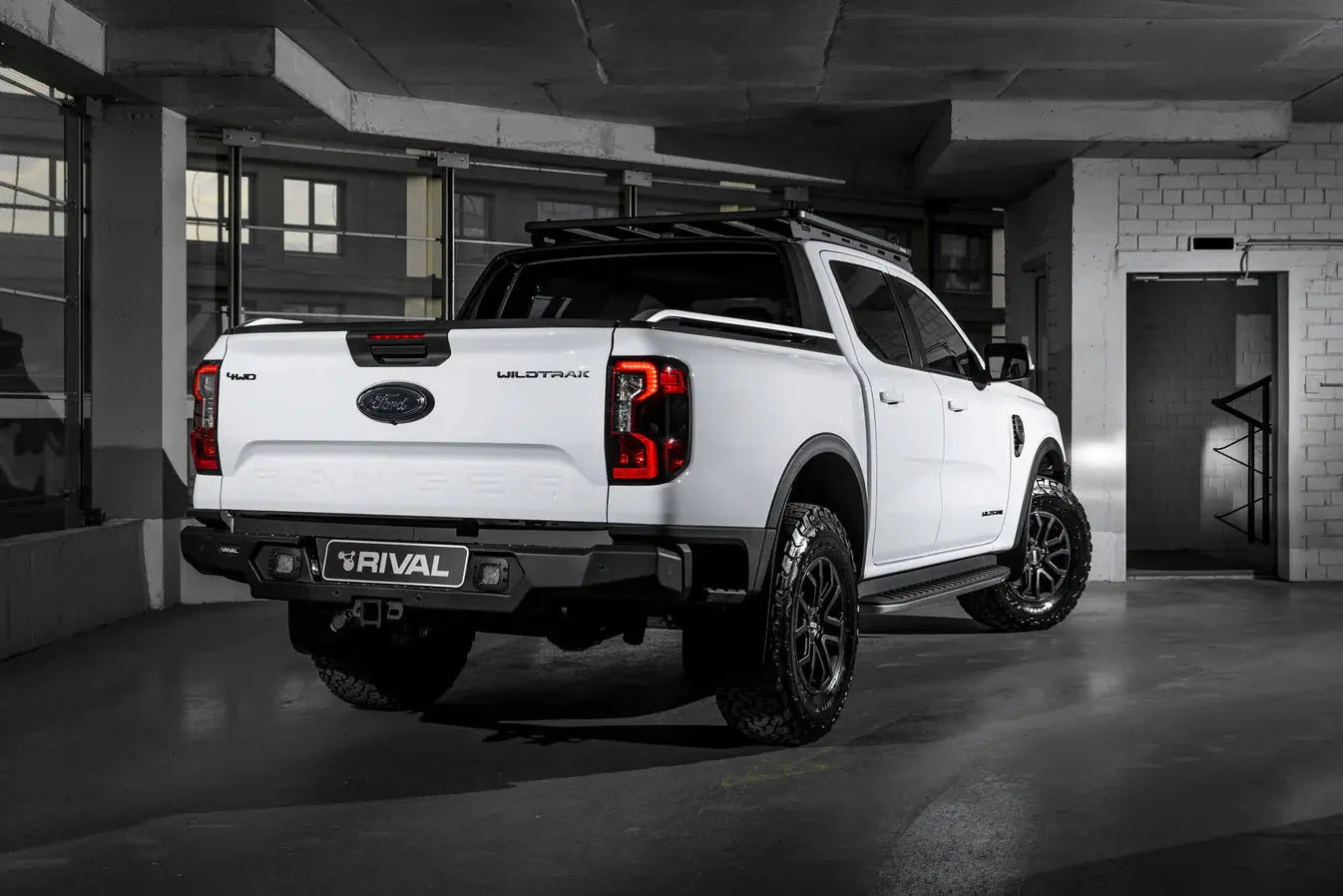

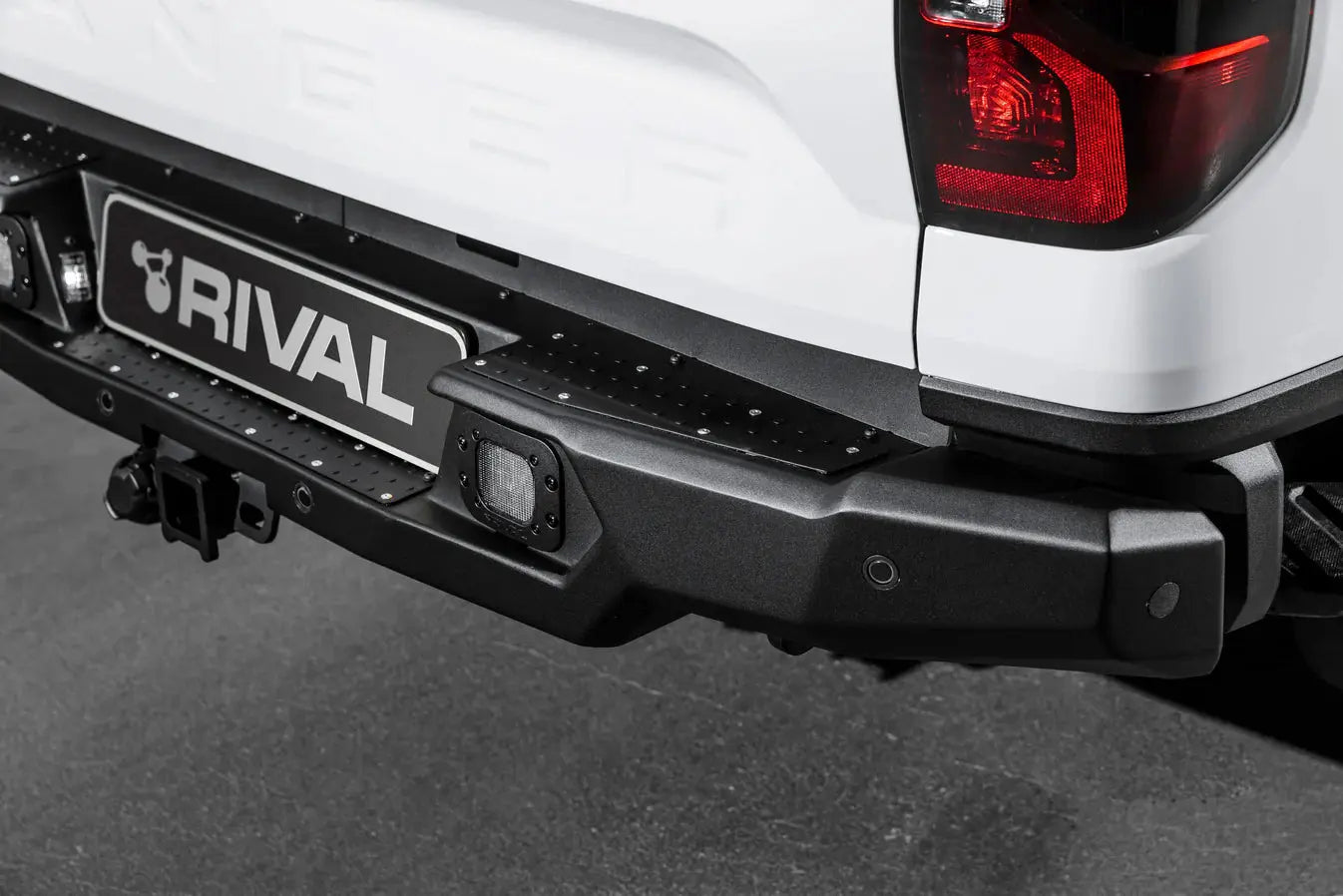

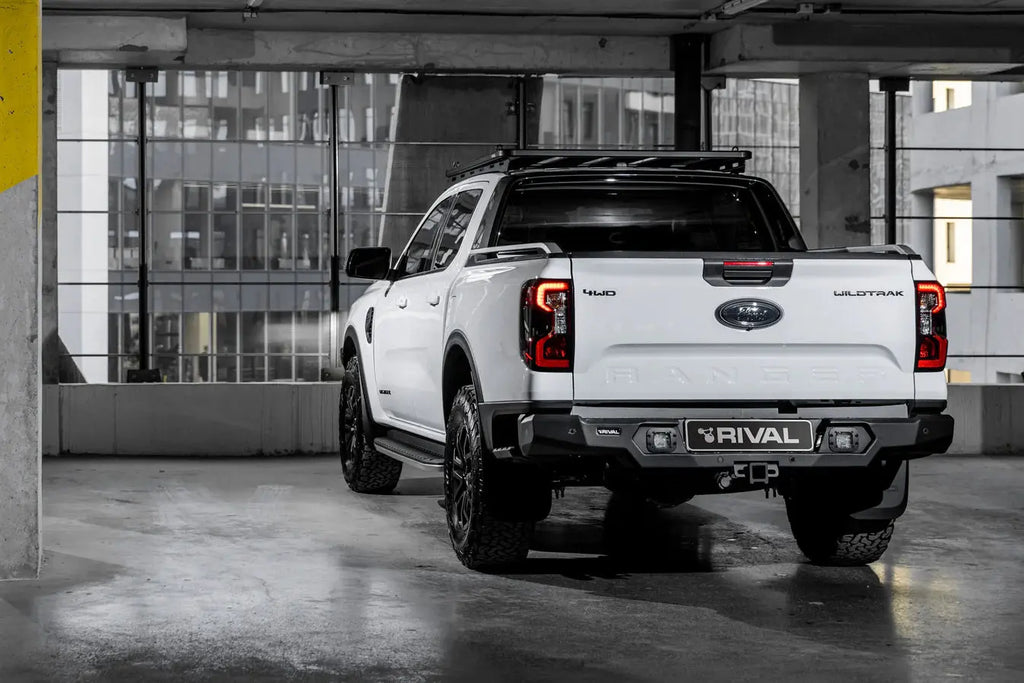

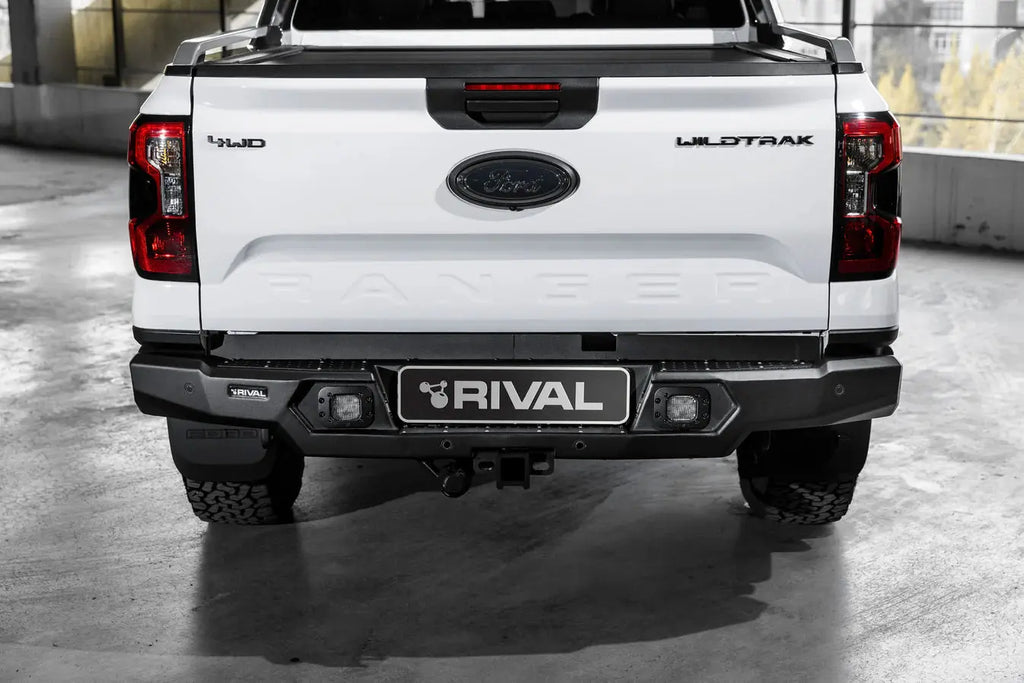

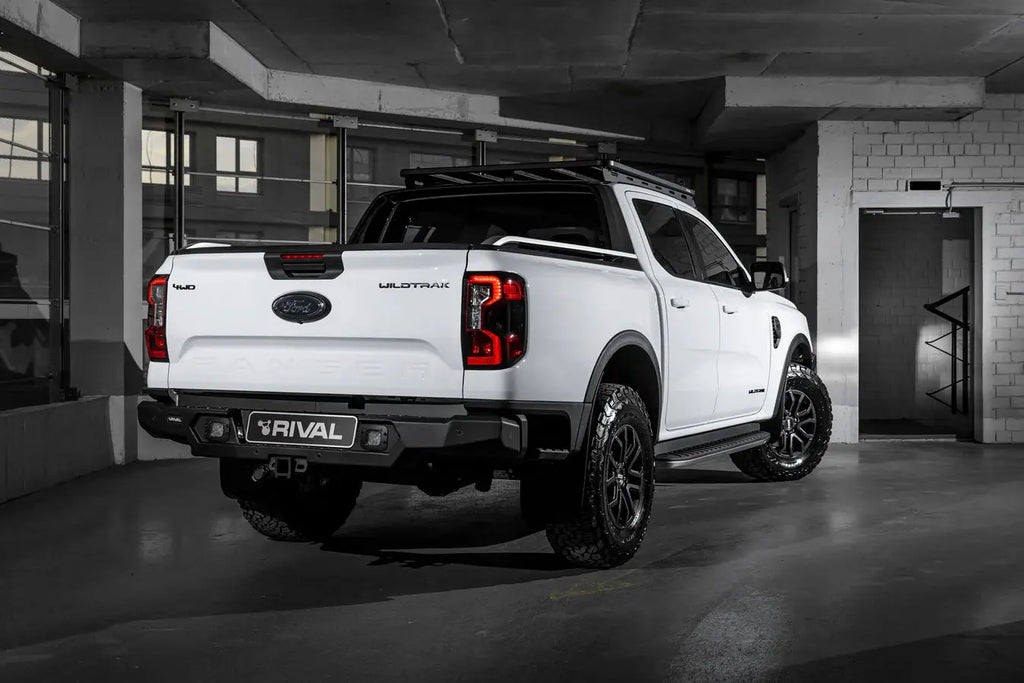

Give your Ford Ranger Next Gen the rear-end armour it deserves. The RIVAL Aluminium Rear Bar replaces your factory rear bumper with a purpose-built, high-strength aluminium unit designed to handle everything the Australian bush throws at it. From reversing into scrub on a tight Cape York track to protecting your tray while towing a loaded boat trailer down a corrugated outback road, this rear bar delivers uncompromising protection without the weight penalty of steel.
- ✓ High-Strength Aluminium Construction — Lightweight yet tough rear-end protection
- ✓ Includes 2x RIVAL Spotlights — Enhanced rear visibility for reversing and camp lighting
- ✓ Tow Bar Compatible — Works with factory and aftermarket tow hitches
- ✓ Towing Rating: 3,500 kg
- ✓ Corrosion-Resistant — Powder-coated matte black finish
- ✓ Sensor Compatible — Works with factory rear parking sensors
- ✓ Integrated WLL 5,000 kg Recovery Points
- ✓ Direct Bolt-On Design — Full OE rear bumper replacement
Key Features
-
Material: 4mm high-strength aluminium alloy (5262 H111 grade)
-
Weight: 45 kg — significantly lighter than steel alternatives
-
Finish: Textured matte black powder coat
-
Recovery Points: Integrated WLL 5,000 kg rated recovery points
-
Towing Rating: 3,500 kg
-
Sensor Compatibility: Yes — compatible with factory rear parking sensors
-
Lighting: Supplied with 2x RIVAL Spotlights; RIVAL by Osram LED Lights available separately
-
Departure Angle: Optimised design maintains maximum departure angle
-
Number Plate: Integrated number plate mount
-
Compliance: Engineered to Australian standards
-
Fitment: Ford Ranger Next Gen (2022–On) — All variants
Why Choose Aluminium Over Steel?
Reduced Rear-End Weight
At 45 kg, this bar preserves payload capacity and towing dynamics compared to heavier steel alternatives.
Superior Corrosion Resistance
Naturally resistant to rust — critical for vehicles exposed to coastal salt spray, tropical humidity and red-dust conditions across Australia.
Engineered Energy Management
Aluminium deforms progressively under impact, assisting in energy dispersion during low-speed reversing impacts.
Optimised for Modern Vehicles
Compact, lightweight design maintains maximum departure angle and supports correct vehicle dynamics under load.

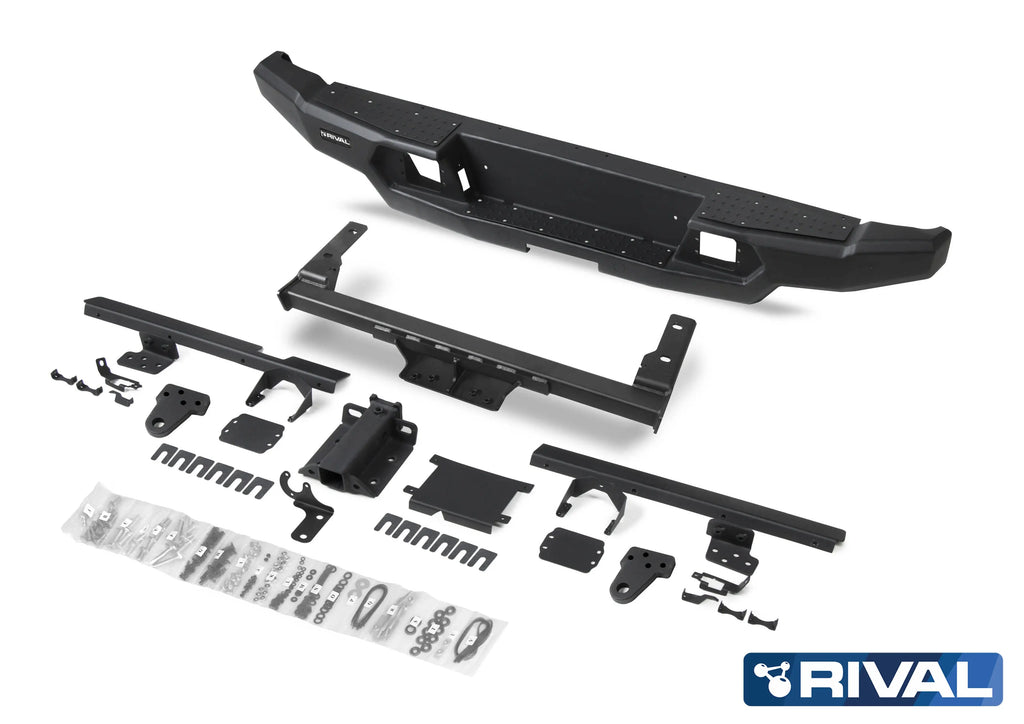

What's Included
- ✓ 1x RIVAL Aluminium Rear Bar
- ✓ 2x RIVAL Spotlights
- ✓ Complete mounting hardware & bolts
- ✓ Installation instructions
Not Included: Tow hitch, shackles (sold separately).
Installation
Difficulty Level: Moderate — Professional installation recommended
Requirements: Standard hand tools, torque wrench
Direct Bolt-On Design — Full OE rear bumper replacement. No drilling or permanent chassis modifications required.
Professional installation available through RIVAL's national dealer network.
ADR Compliance & Safety
- ✓ Sensor Compatible — Works with factory rear parking sensors
- ✓ Crash Tested — Engineered to maintain vehicle safety systems
Perfect For
- Touring & Remote Australian Travel
- Coastal & Corrosion-Prone Environments
- Tradies & Fleet Operators
- Towing Caravans, Boats & Trailers
- Night-Time Reversing & Camp Setup
Compatibility
Fits: Ford Ranger Next Gen (2022–On) — All variants including:
XL, XLS, XLT, Sport, Wildtrak, Wildtrak X, Platinum
Engines: 2.0L Bi-Turbo Diesel, 3.0L V6 Turbo-Diesel
Towing Compatibility
Rated to 3,500 kg towing capacity. Compatible with factory and aftermarket tow hitches and tongue assemblies. Ideal for caravans, boat trailers, camper trailers and box trailers.
Why RIVAL 4x4?
Australian-Based Operations & Support
Local team providing dedicated technical assistance and warranty support.
Globally Engineered. Locally Proven.
Developed using advanced manufacturing processes and tested in Australian touring and off-road conditions.
High-Strength Aluminium Construction
Exceptional strength-to-weight performance and corrosion resistance.
Fast Australia-Wide Dispatch
Reliable delivery nationwide from local warehouses.
National Dealer & Installation Network
Trusted dealers and professional installers across major cities and regional Australia.
Complete your Ranger's protection — front to back, built for the bush. Order now!
