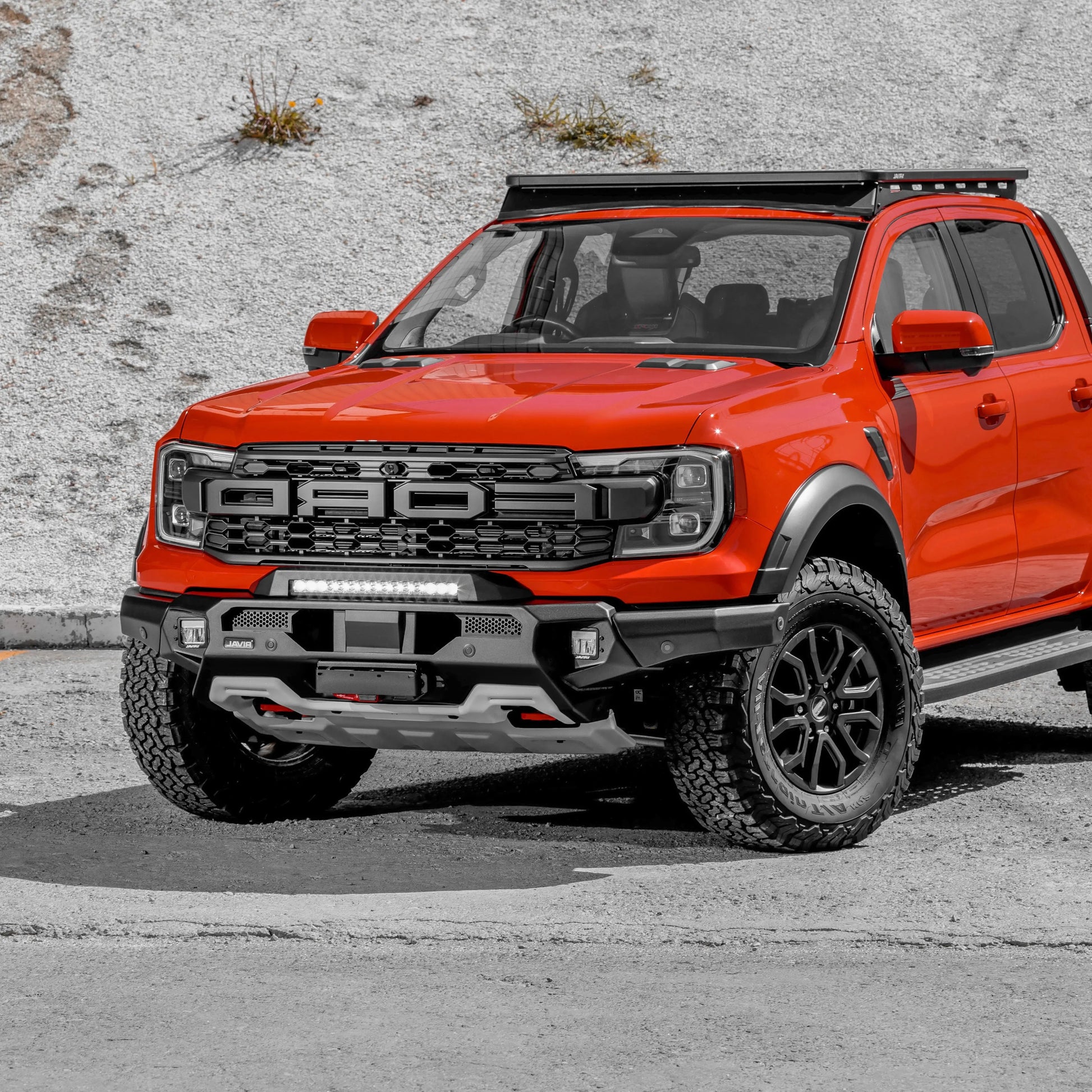

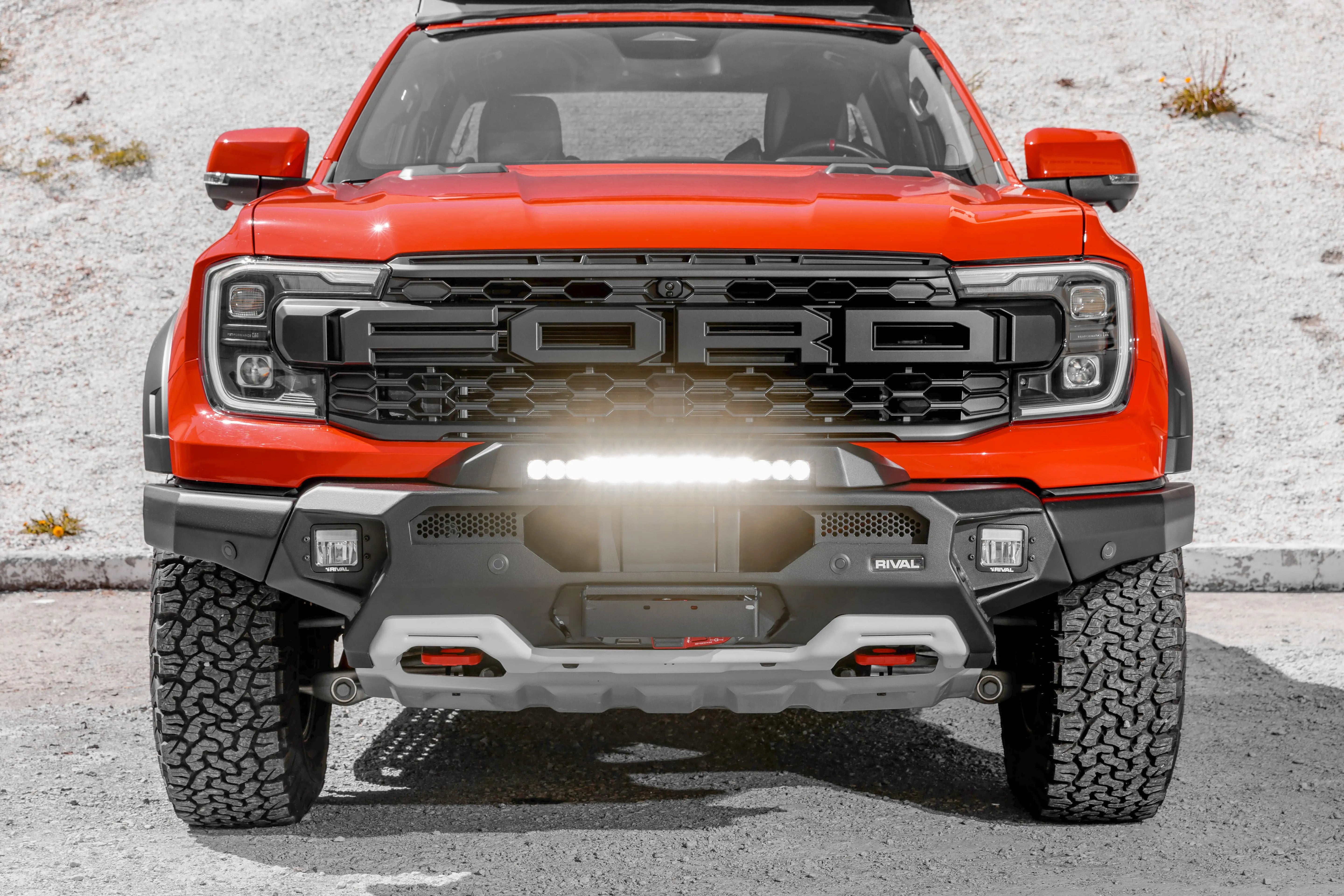

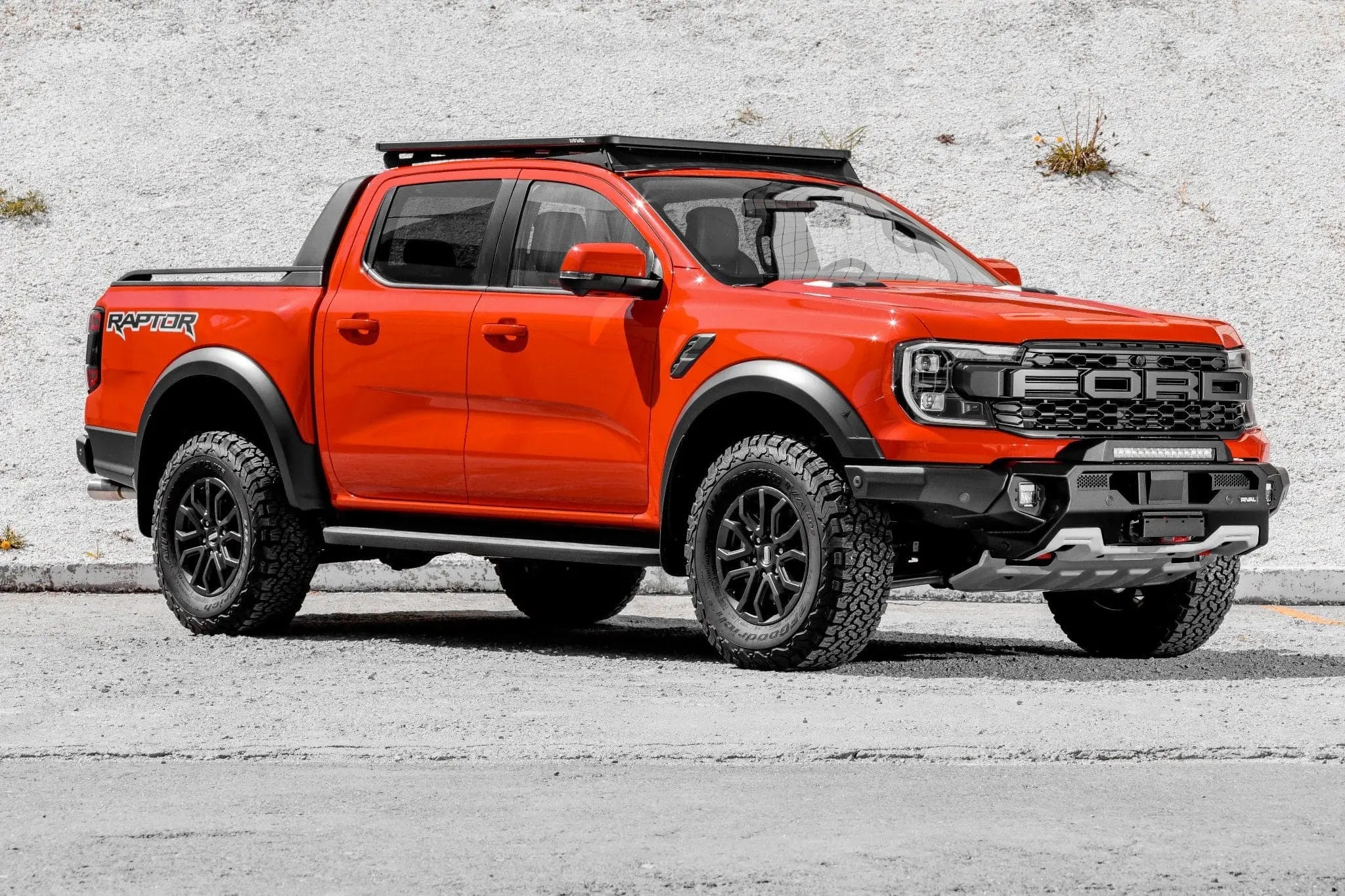

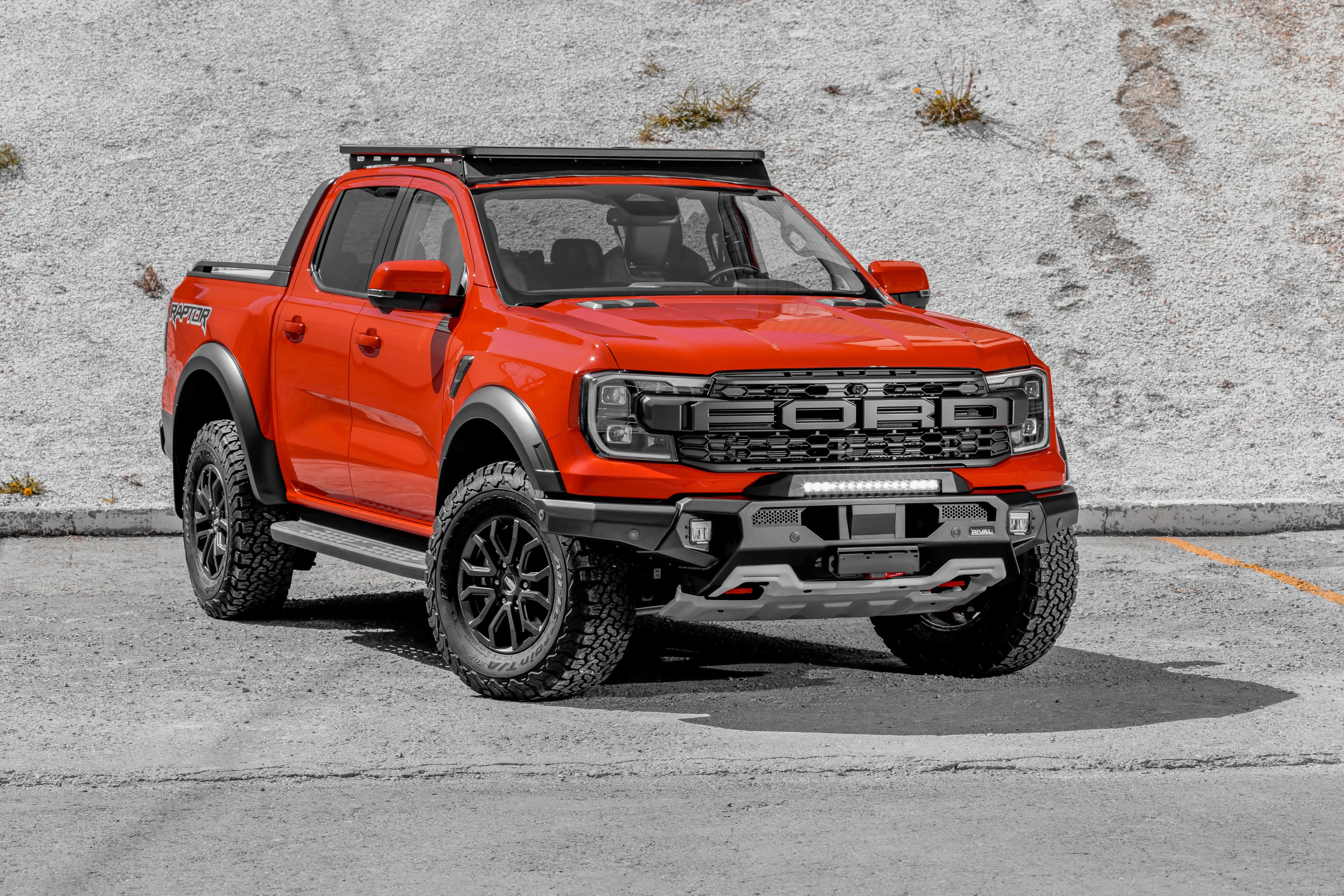

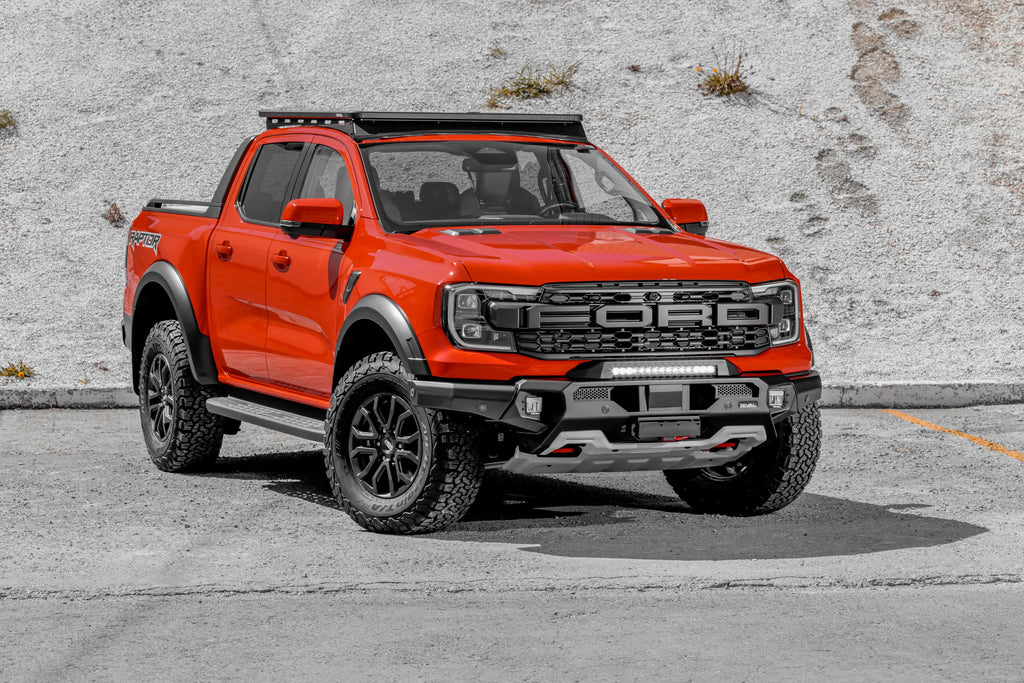

Aluminium Front Bar — Ford Ranger Raptor Next Gen (2022–On)
Includes RIVAL LED FOG Lights (Set of 2)
Installation Manual
Weight: 61 kg
The Ford Ranger Raptor Next Gen is the most performance-focused ute ever sold in Australia — powered by a twin-turbo V6 and equipped with Fox suspension designed for high-speed desert running. The RIVAL Aluminium Front Bar matches that intent, providing the heavy-duty front-end protection the Raptor needs when you push beyond the graded tracks. From blasting across the gibber plains of the Oodnadatta Track to navigating the washouts north of Dalhousie Springs, this bar protects your Raptor's substantial investment while retaining every sensor, radar and safety system Ford engineered into the platform.
- ✓ Winch-Ready Design — Integrated steel winch cradle for winches up to 10,000 lbs
- ✓ Includes 2x RIVAL LED FOG Lights — Superior visibility at high speed in dust and low light
- ✓ Corrosion-Resistant — Textured matte black powder coat finish
- ✓ Sensor Compatible — Works with factory parking sensors
- ✓ Radar Compatible — Retains factory adaptive cruise control, AEB and pre-collision systems
- ✓ Built-in Aluminium Bash Plate — Integrated underbody protection
- ✓ Integrated WLL 5,000 kg Recovery Points
Key Features
-
Material: 6mm high-strength aluminium alloy (5263 H111 grade)
-
Weight: 61 kg — significantly lighter than steel alternatives
-
Finish: Textured matte black powder coat
-
Recovery Points: Integrated WLL 5,000 kg rated recovery points
-
Sensor Compatibility: Yes — compatible with factory parking sensors
-
Radar Compatibility: Yes — compatible with factory radar/adaptive cruise control
-
Winch Mount: 5mm thick steel winch cradle; compatible with winches up to 10,000 lbs
-
Lighting: Supplied with 2x RIVAL LED FOG Lights; RIVAL by Osram Premium 3-Function Lights available separately
-
Bash Plate: Built-in aluminium underbody bash plate
-
Number Plate: Flip-up number plate kit included
-
Compliance: Engineered to maintain vehicle safety systems
-
Fitment: Ford Ranger Raptor Next Gen (2022–On)
Why Choose Aluminium Over Steel?
Reduced Front-End Weight
At 61 kg, this bar saves significant weight over steel alternatives — critical for the Raptor where every kilogram affects high-speed handling and Fox suspension performance.
Superior Corrosion Resistance
Aluminium naturally resists rust, ensuring your Raptor's aggressive front end stays clean after years of dust, mud, salt and water crossings.
Engineered Energy Management
Aluminium construction deforms progressively under impact, assisting in controlled energy dispersion during a collision.
Optimised for Performance Vehicles
Lighter weight preserves the Raptor's factory weight distribution, supporting the advanced Fox suspension calibration and high-speed stability.

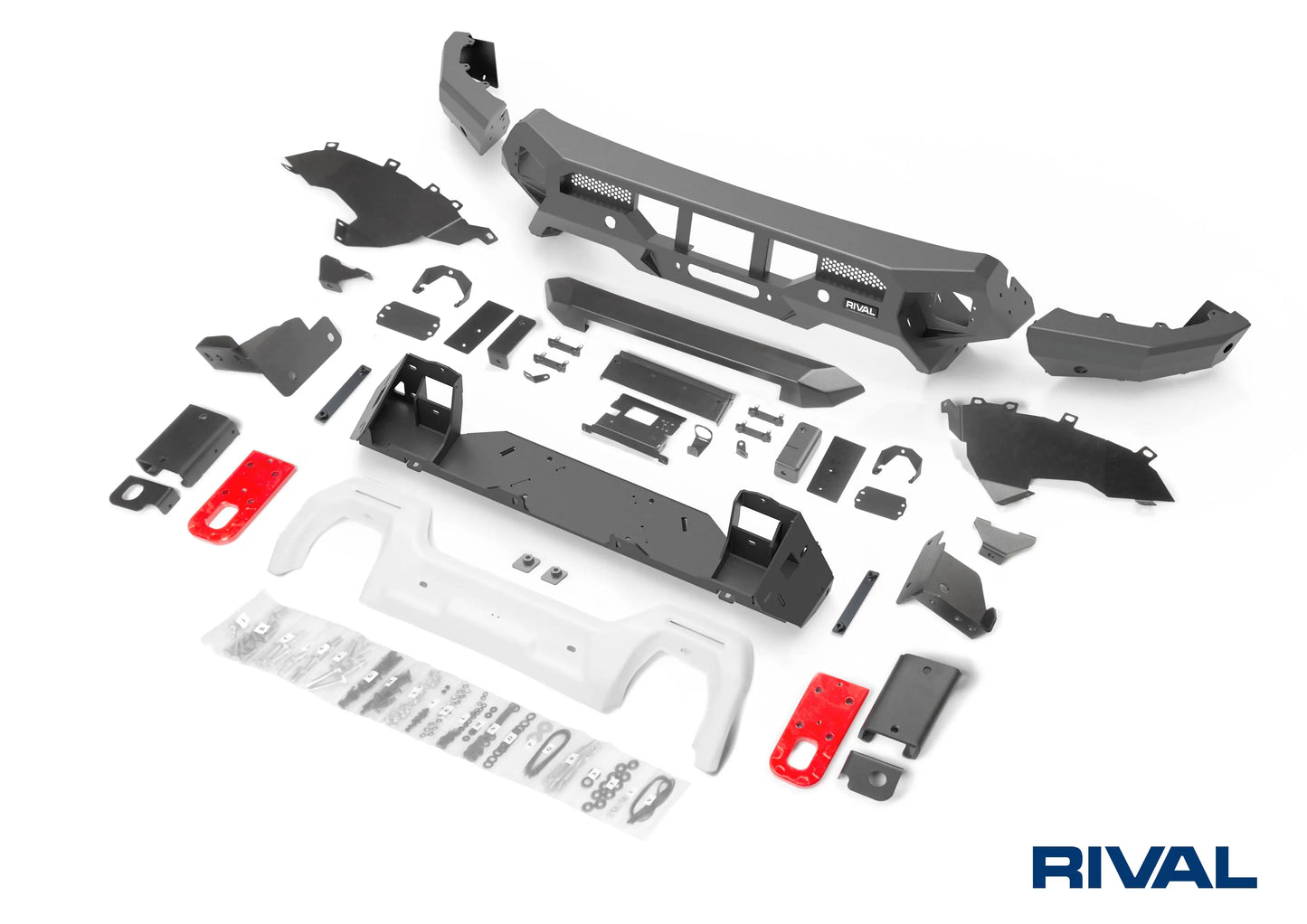

What's Included
- ✓ 1x RIVAL Aluminium Front Bar
- ✓ 2x RIVAL LED FOG Lights
- ✓ 5mm steel winch mount cradle
- ✓ Flip-up number plate kit
- ✓ Built-in aluminium bash plate
- ✓ Complete mounting hardware & bolts
- ✓ Installation instructions
Not Included: Winch, hawse, shackles (sold separately).
Installation
Difficulty Level: Moderate — Professional installation recommended
Requirements: Standard hand tools, torque wrench
Direct Bolt-On Design — Full OE bumper replacement. No permanent chassis modifications required.
ADR Compliance & Safety
- ✓ Airbag Compatible — Engineered to maintain correct airbag deployment
- ✓ Crash Tested — Tested to ensure occupant safety standards
Perfect For
- High-Speed Desert Running — Oodnadatta Track, Finke Desert, gibber plains
- Touring & Remote Australian Travel
- Coastal & Corrosion-Prone Environments
- Protection Against Animal Strikes — kangaroos, camels, emus
- Off-Road Recovery Operations
Compatibility
Fits: Ford Ranger Raptor Next Gen (2022–On) — All variants:
3.0L V6 EcoBoost Twin-Turbo Petrol (292kW)
Winch Compatibility
Integrated 5mm steel winch cradle accommodates winches up to 10,000 lbs, including synthetic and wire rope models such as WARN VR EVO 10-S and Runva EWX 9500-Q.
Why RIVAL 4x4?
Australian-Based Operations & Support
Local team providing dedicated technical assistance and warranty support from Australia.
Globally Engineered. Locally Proven.
Designed with advanced engineering and tested in Australia's most demanding conditions.
High-Strength Aluminium Construction
Exceptional strength-to-weight performance and natural corrosion resistance.
Fast Australia-Wide Dispatch
Reliable delivery nationwide from our local warehouse.
National Dealer & Installation Network
Trusted professional installers across major cities and regional Australia.
Performance protection for Australia's most capable ute. Armour your Raptor before the next send. Order now!
