Aluminium Transfer Case Bash Plate — Isuzu D-Max / Mazda BT-50 (2021–Present)
Weight: 12.5 kg

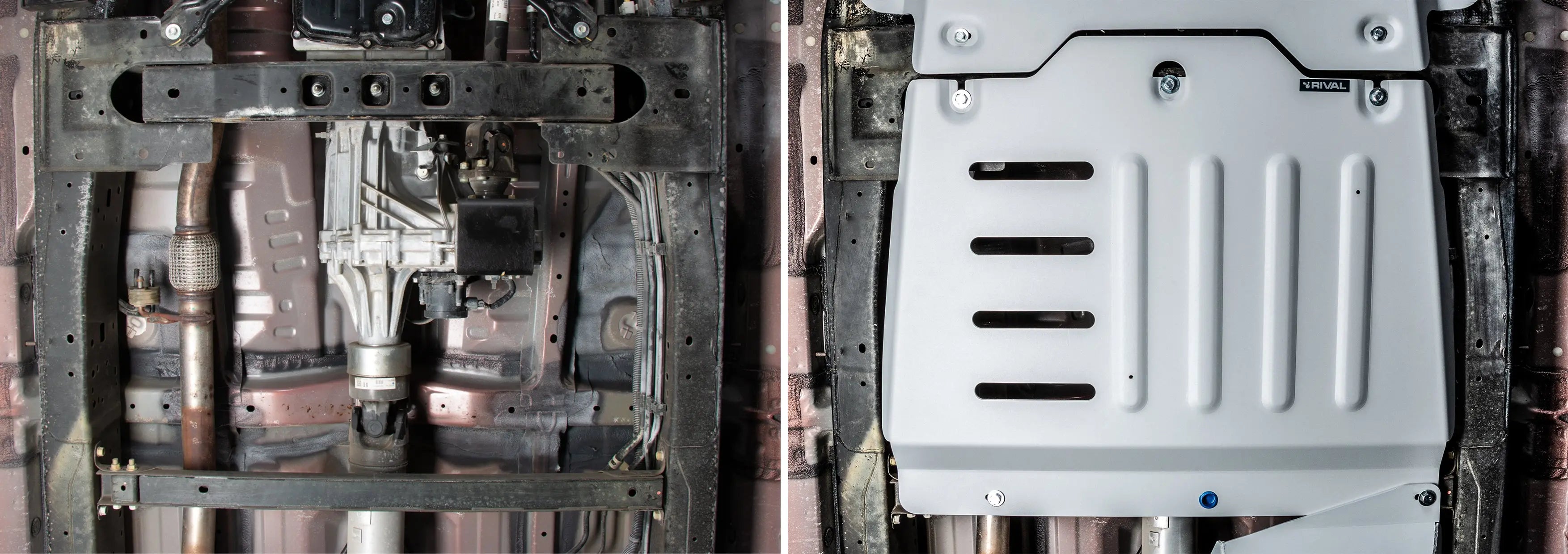

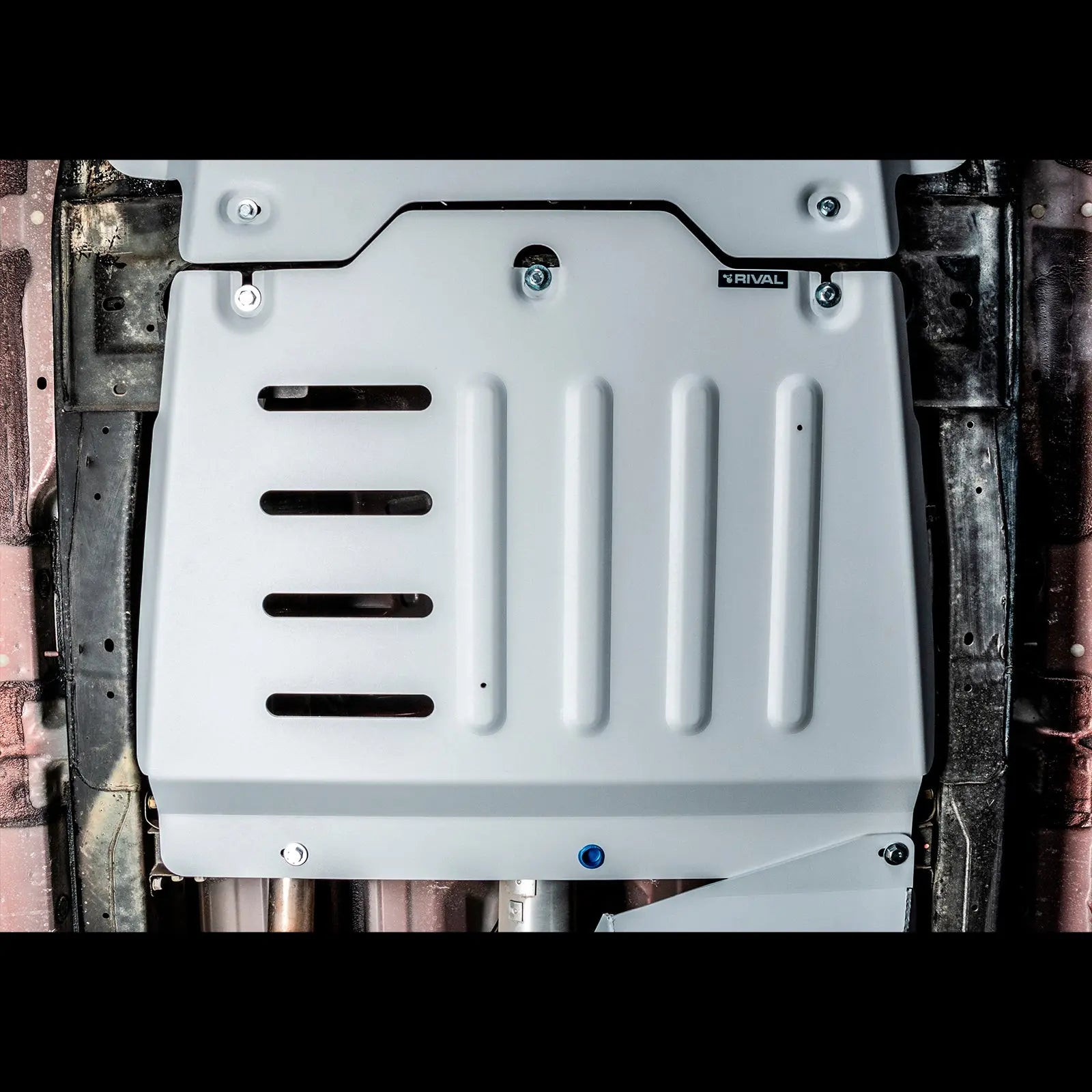

When you're crossing the endless stretches of the Nullarbor, where road debris and unexpected wildlife encounters demand total preparedness, your Isuzu D-Max's transfer case is the component that makes it a genuine 4WD. This precision gearbox splits power between front and rear axles, engaging low range when the going gets serious. A rock strike to the transfer case housing can crack it, drain the fluid, and leave you without four-wheel drive — exactly when terrain demands it most. The RIVAL 4x4 Transfer Case Bash Plate for the D-Max and BT-50 (2021+) delivers precision-engineered protection for your transfer case — the heart of your 4WD system that splits power between front and rear axles. At 12.5 kg of deep-stamped 6mm aluminium, this plate means business.
- ✓ High-Strength 6mm Aluminium Alloy Construction
- ✓ Precision Fit — Vehicle-Specific Design for D-Max / BT-50 (2021+)
- ✓ Full Transfer Case Coverage
- ✓ Corrosion-Resistant Powder Coat Finish
- ✓ Ventilated Design for Airflow & Debris Drainage
- ✓ Bolt-On Installation — No Drilling Required
Key Features
-
Material: 6mm Deep-Stamped High-Strength Aluminium Alloy (5251 grade)
-
Thickness: 6mm
-
Weight: 12.5 kg
-
Finish: Textured Matte Black Polymer Powder Coat
-
Mounting: Direct bolt-on to factory mounting points — no drilling or chassis modification required
-
Fitment: Isuzu D-Max (2021–Present) / Mazda BT-50 (2021–Present)
Why Choose Aluminium Over Steel?
-
Weight Savings: Aluminium is approximately 40% lighter than steel, helping your D-Max stay within GVM while carrying full loads of gear, tools, and touring equipment.
-
Corrosion Resistance: Unlike steel, aluminium naturally forms a protective oxide layer. Combined with powder coating, your bash plate won't rust — even after years of salt-air exposure, water crossings, and red-dust trails.
-
Energy Absorption: Aluminium's natural flex absorbs and distributes impact energy across the plate rather than transferring sharp jolts directly to the transfer case housing and crossmember.
-
Modern Vehicle Design: The D-Max and BT-50 are built to specific weight limits. Aluminium bash plates add protection without compromising payload or towing capacity.

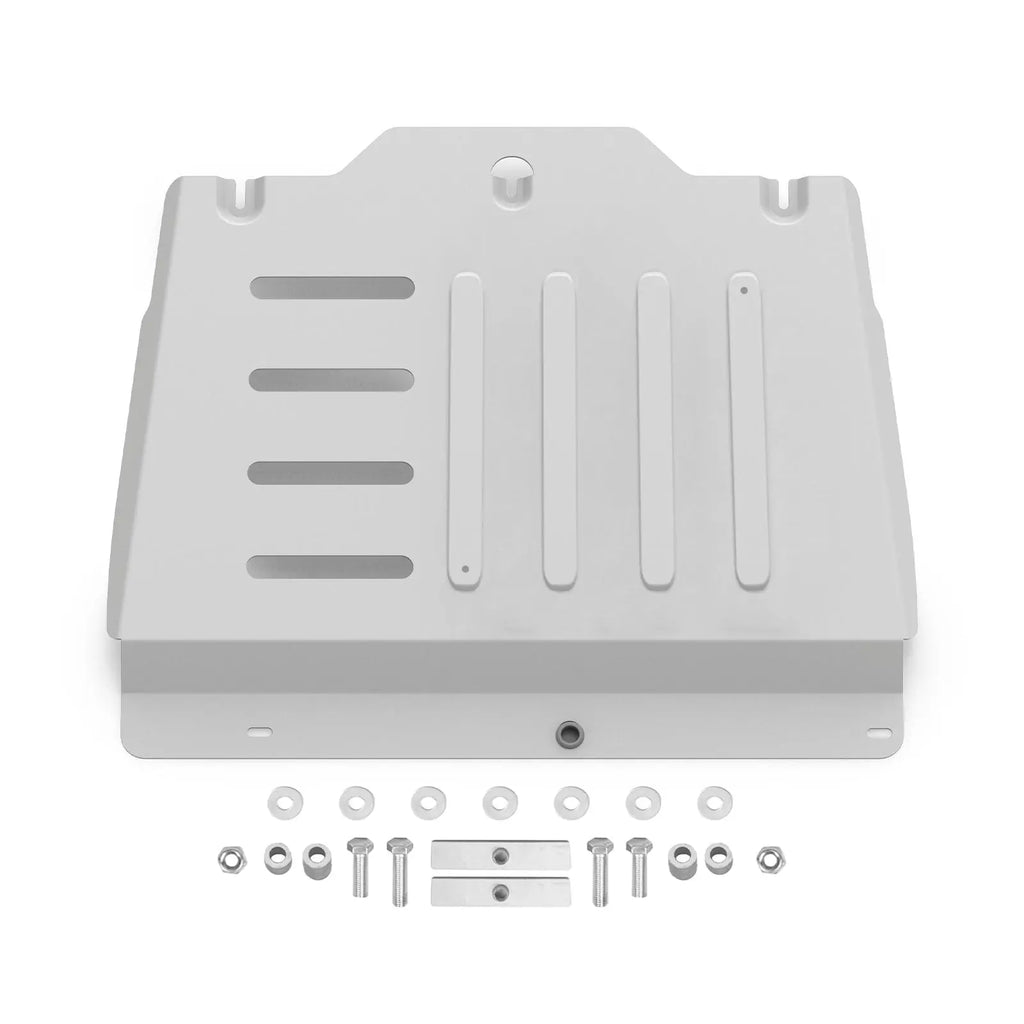

What's Included
- ✓ 1x RIVAL Transfer Case Bash Plate for Isuzu D-Max / Mazda BT-50
- ✓ Complete Mounting Hardware & Fitting Kit
- ✓ High-Tensile Bolts & Fasteners
- ✓ Installation Instructions
Installation
-
Difficulty: Easy — suitable for home mechanics with basic tools
-
Requirements: Standard socket set, jack & stands or vehicle hoist
-
Bolt-On Design: Mounts directly to factory mounting points with no drilling, cutting, or permanent modification. Fully reversible installation that won't affect your vehicle's warranty.
Built for Australian Conditions
The D-Max and BT-50 are among Australia's most capable and popular utes, equally at home on building sites and bush tracks. But their transfer cases sit exposed beneath the chassis, directly in the path of rocks, stumps, and trail debris. From the rocky river crossings of the Kimberley to the sharp gibber stones of the Strzelecki Track, Australian terrain consistently targets this critical 4WD component.
RIVAL bash plates are engineered for these exact conditions. The deep-stamped construction creates integrated stiffening ribs that provide up to two times the impact resistance of flat-plate designs. The powder coat finish resists UV degradation, salt corrosion, and the abrasive red dust that defines Australian off-road travel.
Perfect For
- Long-distance outback touring — Cape York, Gibb River Road, Simpson Desert
- Coastal driving where salt air accelerates corrosion on exposed drivetrain components
- Tradies and fleet vehicles operating on construction sites, farms, and mining roads
- Serious off-road adventures including rock crawling, river crossings, and rutted tracks
- Daily driving with peace of mind knowing your transfer case is protected from road debris and hazards
Compatibility
Vehicle: Isuzu D-Max (2021–Present) / Mazda BT-50 (2021–Present)
Engine Options: 3.0L 4-Cylinder Turbo Diesel (4JJ3-TCX)
Variants: All cab configurations and trim levels. Verify fitment with your vehicle's build date and chassis number if unsure.
Why RIVAL 4x4?
-
Australian-Based Operations & Support: Local team, local warranty, local knowledge. Phone and email support from people who actually drive these tracks.
-
Globally Engineered. Locally Proven: Designed using advanced CAD/CAM and FEA stress analysis, then tested on Australia's toughest tracks to ensure real-world performance.
-
High-Strength Aluminium Construction: Premium 5251-grade alloy, deep-stamped for maximum rigidity, finished with durable polymer powder coat.
-
Fast Australia-Wide Dispatch: Stocked locally for rapid delivery to metro, regional, and remote addresses across Australia.
-
National Dealer & Installation Network: Professional fitting available through RIVAL's network of authorised dealers and 4x4 workshops across every state and territory.
Your 4WD system is what makes your D-Max capable. Keep it that way with RIVAL 4x4 transfer case protection — engineered tough, built to last. Order now!
